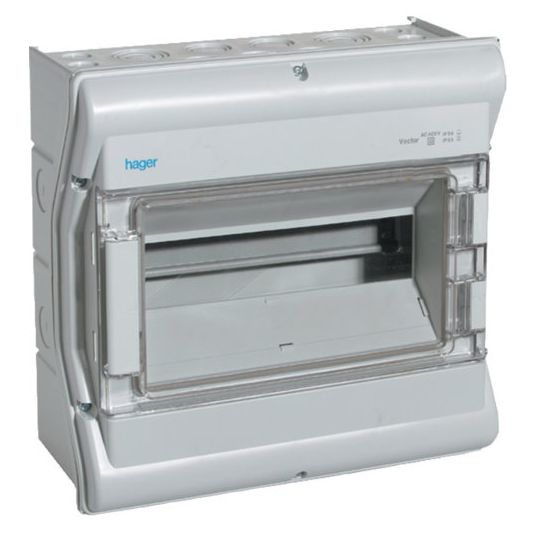

Hager 12 Pole Small Distributor Surface Mount 400 Volt 63 Amp Plastic Transparent Door

Description

Small Distributor, 400 Volt, 63 Amp, 1 Row, 12 Module, IP65, Surface Mounting, For Use With DIN Equipment, Plastic, Light Grey, 25 to 40 deg C, 302 mm Height x 310 mm Width x 151 mm Depth, Transparent Door

Key Specifications

Barcode (EAN-13)	3250616454088
SKU	HAGVE112H
Brand	Hager
Range Name	Vector

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	UV radiation resistant Class II/Double insulated enclosure Suitable and rated for AC and DC applications Over-sized fixing slot configuration makes mounting and fixing easy Reversible, latching, transparent door with facility for optional lock Adjustable depth DIN rails can be set at 47 mm or 63 mm Pre-marked knock outs for bushes or cable glands M20, M25, M32, M40 and M50 Supplied with links, forked busbar and circuit ID labels E&N terminal bar can be mounted at the top or bottom of the enclosure
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	VE112H
Colour	Light Grey
Dimensions	302 mm Height x 310 mm Width x 151 mm Depth
Current	63 Amp
IP Rating	IP65
For Use With	DIN Equipment
Modules	12 Module
Material	Plastic
Number of Rows	1 Row
Please Note	Transparent Door
Mounting Method	Surface
Temperature	25 to 40 deg C
Voltage	400 Volt
