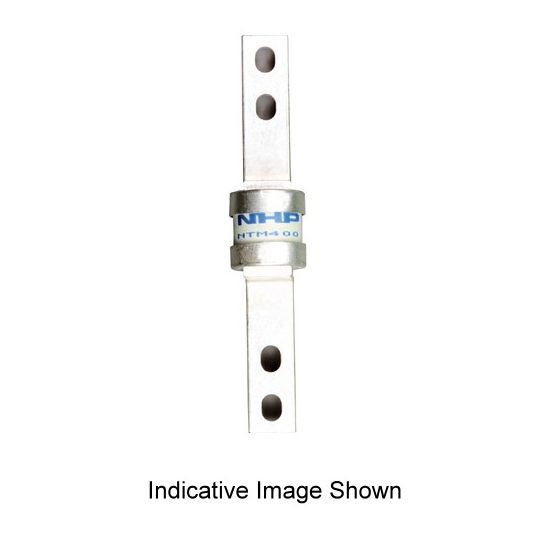

NHP Fuse Link HRC Bolt In Centre Motor Rated 355 Amp 500VAC 80 kA Class gG BS88 Type B4
Loading...
Description
Fuse Link HRC Bolt In Centre, 500 VAC, 355 Amp, Class gG, Interrupt Capacity: 80 kA, 111mm Fixing Centres, Bolt In Centre Motor Rated Tag, 137mm Height x 50.5mm Width x 50.5mm Depth, BS88 Type B4
Key Specifications
| Barcode (EAN-13) |
5019586065230
|
|---|---|
| SKU |
NHPNTMF355
|
| Brand |
NHP
|
| Range Name |
Compact Fuses
|
| Product Type |
Fuse Links HRC
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | NTMF355 |
| Dimensions | 137 mm Height x 50.5 mm Width x 50.5 mm Depth |
| Current | 355 Amp |
| Fixing Centres | 111 mm |
| Interrupt Capacity | 80 kA |
| Standard Reference | BS88 Type B4 |
| Utilisation Category | Class gG |
| Tag Type | Bolt In Centre Motor Rated |
| Voltage | 500 Volt AC |
