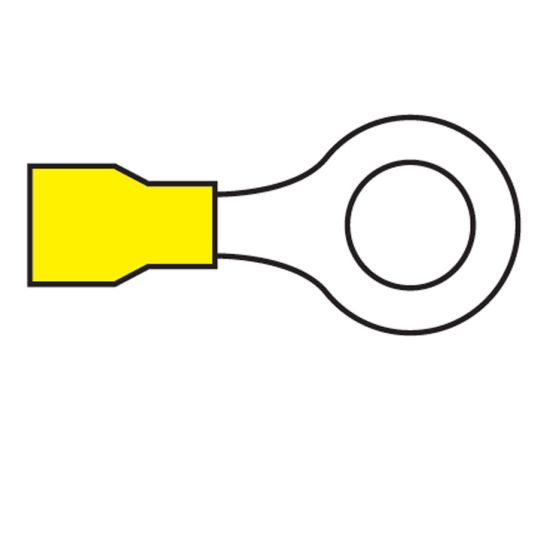

Hellermann Tyton Ring Terminal Insulated Double Grip Yellow Vinyl 4-6mm 10.5mm Stud

chevron-left
loader
Loading...

Description

chevron-down
Ring Terminal Insulated Double Grip, 4-6 mm, 10.5 mm Stud, Double Grip Ring Terminal, 6-7 mm Wire Strip Length, HYYT7, Copper Body, Copper, PVC Insulation, Yellow Insulation, 75 deg C, 50 Pack

Key Specifications

chevron-down
Barcode (EAN-13)
9349519000165
SKU
HMYRD5-10
Brand
Hellermann Tyton
Product Type
Forked & Ring Terminals

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Double Grip with special double crimp for use in high vibration areas (use YYT7 crimper)
  • Three piece manufacturing process
  • Colour-coded vinyl insulated for easier identification of cable sizes
  • Resealable bags
Standard Pack Size 50
UNSPSC Class 39121400
UOM PK
Vendor Product RD5-10
Conductive Material Copper
Body Material Copper
Conductor Size 4.0-6.0mm
Crimping Die HYYT7
Insulation Colour Yellow
Insulation Material PVC
Pack Size 50 Pack
Stud Size 10.5 mm
Temperature 75 deg C
Terminal Type Double Grip Ring
Wire Strip Length 6-7 mm
