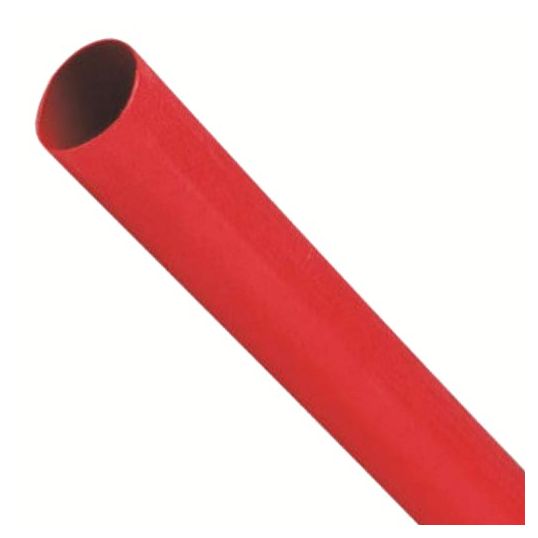

Heatshrink Tube Thin Wall Unlined 6.4-3.2mm 1.2M Red

Cabac XLP Heatshrink Tubing Thin Wall Plain Unlined General Purpose 6.4-3.2mm 1.2M Red

PRODUCT CODE:
CAAXLP7-RD/4FT

Std Pack Size
1
OUR P/N:
CAAXLP7-RD/4FT

You need to be registered and logged in to view product details and pricing

Heatshrink Tubing, Thin Wall, Plain Unlined, Shrink Diameter From 6.4 mm to 3.2 mm, Shrink Ratio: 2:1, Wall Thickness Recovered: 0.56 mm, 1.2 mtr Length, 600 Volt, Dielectric Strength: 20 kV/mm, Tensile Strength: 16 MPa, Shrink Temperature: 100 Deg C, Elongation: 400%, Flammability Rating: ASTM-D-2671, VW-1, XLPO, Red, -75 to 135 Deg C

Additional Information

Additional Information
Brand Cabac
Range Name XLP Tubing
Standard Pack Size 1
UNSPSC Class 39121700
UOM LN
Vendor Product XLP7RD/4FT
Colour Red
Dielectric Strength 20 kV/mm
Elongation 400%
Flammability Rating ASTM-D-2671/VW-1
Lining Type Plain Unlined
Length 1.2mtr
Product Type Heatshrink Tubing
Shrink Diameter From 6.4mm
Shrink Diameter To 3.2mm
Shrink Ratio 2:1
Temperature -75 to 135 Deg C
Shrink Temperature 100 Deg C
Tensile Strength 16 MPa
Wall Thickness Recovered 0.56 mm
Wall Type Thin
Voltage 600 Volt
