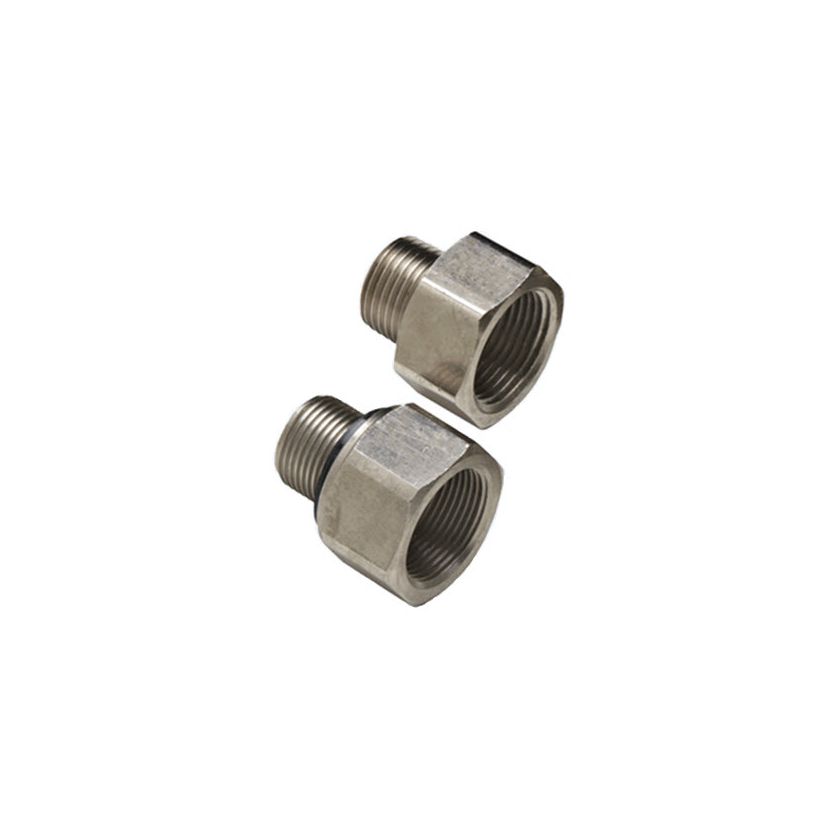

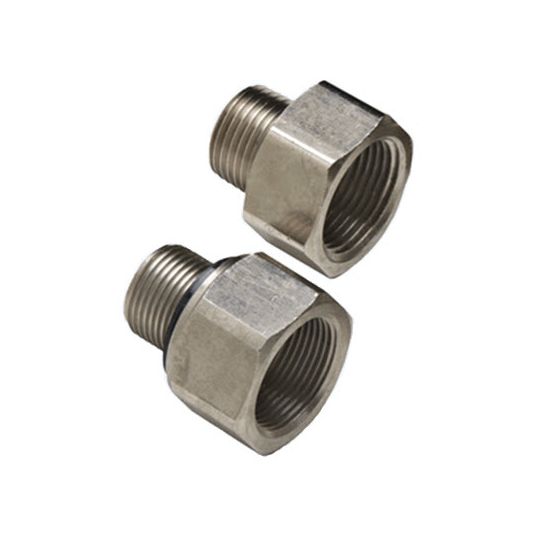

CCG Cable Gland Adaptor M32 Male to M40 Female Nickel Plated Brass

Description

Cable Gland Adaptor, M32 Male to M40 Female, 15 mm Thread Length, Exdb, Exeb, Extb, ExR, 21 mm Hex Length, 50 mm Width Across Flats, 56.3 mm Width Across Corners, IP65/66/68, HDPE Gasket, Brass Body, Nickel Plated Finish, -20 to 95 deg C

Key Specifications

SKU	CCGAM032M040S
Brand	CCG
Range Name	Standard Adaptors
Product Type	Grand Adaptors & Converters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Precision manufactured from high quality Brass Converts mismatching threads to the required thread For general industrial and hazardous area installations The installer should check that the materials are suitable for the installation environment
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	AM032M040S
Finish	Nickel Plated
From	M32 Male
Hazardous Area Rating	Exdb Exeb Extb ExR
Hex Length	21 mm
IP Rating	IP65/66/68
Temperature	-20 to 95 deg C
Thread Length	15 mm
To	M40 Female
Width Across Corners	56.3 mm
Width Across Flats	50 mm
