CCG Cable Gland Reducer 1.5in NPT Male to M20 Female Nickel Plated Brass

Description

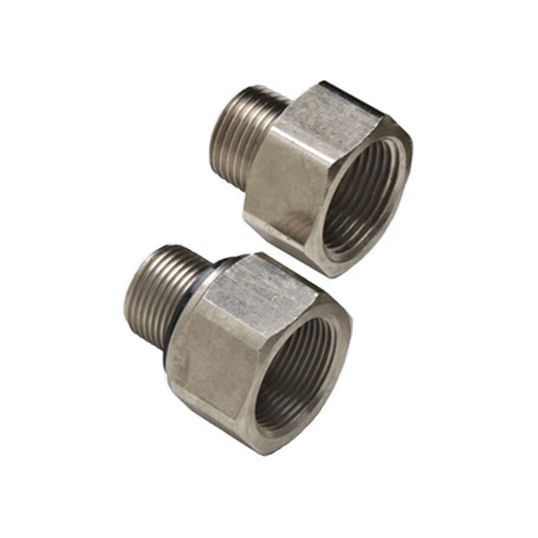

Cable Gland Reducer, 1.5 in NPT Male to M20 Female, 21 mm Thread Length, Exdb, Exeb, Extb, ExnR, 6 mm Hex Length, 48 mm Width Across Flats, 54 mm Width Across Corners, IP65/66/68, HDPE Gasket, Brass Body, Nickel Plated Finish, -20 to 95 deg C

Key Specifications

SKU	CCGRN112M020E
Brand	CCG
Range Name	EX Adaptors
Product Type	Grand Adaptors & Converters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Precision manufactured from high quality Brass Converts mismatching threads to the required thread For general industrial and hazardous area installations The installer should check that the materials are suitable for the installation environment
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	RN112M020E
Finish	Nickel Plated
From	1.5 inch NPT Male
Hazardous Area Rating	Exdb Exeb Extb ExnR
IP Rating	IP65/66/68
Hex Length	6 mm
Temperature	-20 to 95 deg C
Thread Length	21 mm
To	M20 Female
Width Across Flats	48 mm
Width Across Corners	54 mm
