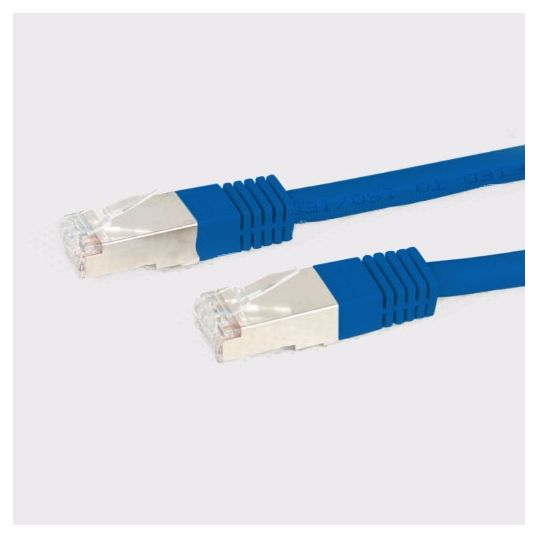

Certech S/FTP Patch Cord Cat6A RJ45-RJ45 26AWG PVC Blue 0.5m

Description

S/FTP Patch Cord Cat6A, Connector A: RJ45 Modular Plug, Connector B: RJ45 Modular Plug, 26 AWG Conductor, Stranded Conductor, 5.8mm (+/-0.3mm) OD, 0.5 mtr Cord Length, IEC 60332-1-2, Wiring Scheme: T568A, PVC Sheath, Boot Material: PVC, Brass Shell, Blue Sheath,-20 to 60 deg C

Key Specifications

SKU	CERNPLC6ASHBL0.5
Brand	Certech
Product Type	Cat6A Patch Cord

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Produced by an ISO9001 & ISO14001 certified manufacturer 100% tested & channel certified by 3P, UL & ETL AS/CA S008:2020 Approved Covered by a lifetime warranty CERTECH Cat6A S/FTP 10G patch leads conform to the ANSI/ TIA/EIA-568-B.2-10 specification Patch leads are wired to the T568A pinout specification
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	NPLC6ASHBL0.5
Conductor Size	26 AWG
Connector A	RJ45
Connector B	RJ45
Cord Length	0.5 mtr
Flammability	IEC 60332-1-2
Outside Diameter	5.8mm (+/-0.3mm)
Plug Boot Material	PVC/Brass Shell
Sheath Colour	Blue
Sheath Material	PVC
Temperature	-20 to 60 deg C
Wiring Scheme	T568A
