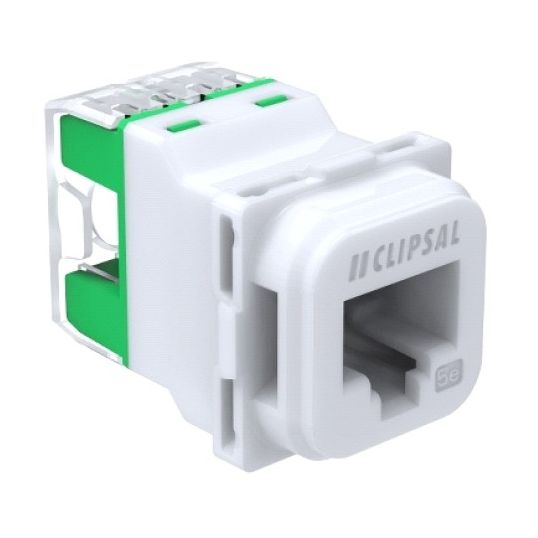

Outlet Mechanism Cat5e UTP, 1000 Volt AC/DC, 1.5 Amp, 24-23 AWG, RJ45 Connector, Cat5e UTP Cable, 8 Pins, >= 500 MOhm at 100 Volt DC Insulation Resistance, 20 mOhm Contact Resistance, 750 Cycles Durability, 1-100 MHz Bandwidth, Wiring Scheme: TIA-568A/B, S-110 40 Mech Outlet Mechanism, Flammability: UL94-V0, ABS + PC Housing, Copper Alloy Contact Base, Gold Plated Contact Plating, Translucent,-10 to 60 deg C, 36mm Length, 22mm Height, 16mm Width
Additional Information
Brand | Clipsal |
---|---|
Range Name | RJ45 |
Standard Pack Size | 1 |
UNSPSC Class | 43223300 |
UOM | EA |
Vendor Product | 40RJ45SMA5C-TN |
Contact Plating Material | Gold Plated |
Contact Resistance | 20 mOhm |
Height | 22mm |
Temperature | -10 to 60 deg C |
Product Type | Outlet Mechanisms Cat5e |
Connector | RJ45 |
Conductor Size | 24-23 AWG |
Outlet Type | S-110 40 Mech |
Width | 16mm |
Contact Base Material | Copper Alloy |
Colour | Translucent |
Flammability | UL94-V0 |
Durability | 750 Cycles |
Wiring Scheme | TIA-568A/B |
Insulation Resistance | >= 500 MOhm at 100 Volt DC |
Length | 36mm |
Number of Pins | 8 Pin |
Frequency Bandwidth | 1-100 MHz |
Cable Type | Cat5e UTP |
Housing Material | ABS |
Current | 1.5 Amp |
Voltage | 1000 Volt AC/DC |
