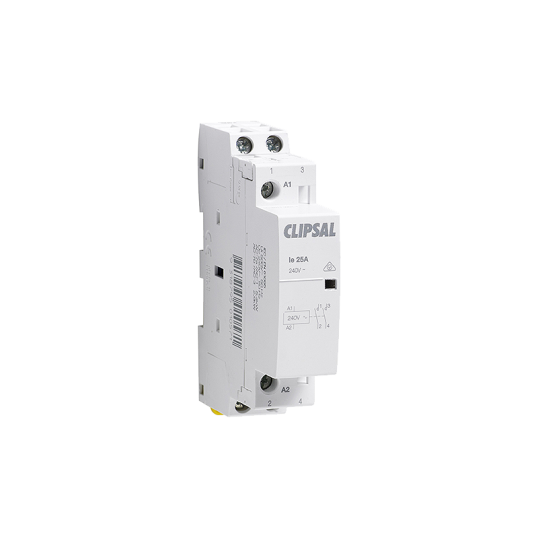

Clipsal Contactor General Purpose AC Operated 1 Pole 25A AC3 8.5A AC1 240V 2NO

Description

Contactor General Purpose AC Operated, 240 Volt AC, AC3 Rating (Amps): 25, AC1 Rating (Amps): 8.5, 2NO Auxiliary, 1 Pole, Lift-Up Clamp, DIN Rail Mount, IP20, 40, -5 to 60 deg C, 81 mm Height, 18 mm Width, 68 mm Depth

Key Specifications

Barcode (EAN-13)	9318795010571
SKU	CLI4CNT2
Brand	Clipsal
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Complementing the 4 series is a range of contactors They are rated from 20 A 1 and 2 module, through to 63 Amp 4 pole 54 mm devices Ideal for hot water service control
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	4CNT2-NLA
AC1 Rating (Amps)	8.5 Amp AC1
AC3 Rating (Amps)	25 Amp AC3
Contact Configuration	1 Normally Opened Aux
Depth	68 mm
Height	81 mm
IP Rating	IP20/40
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Operating Coil Voltage	240 Volt AC
Temperature	-5 to 60 deg C
Terminal Connection	Lift-Up Clamp
Width	18 mm
