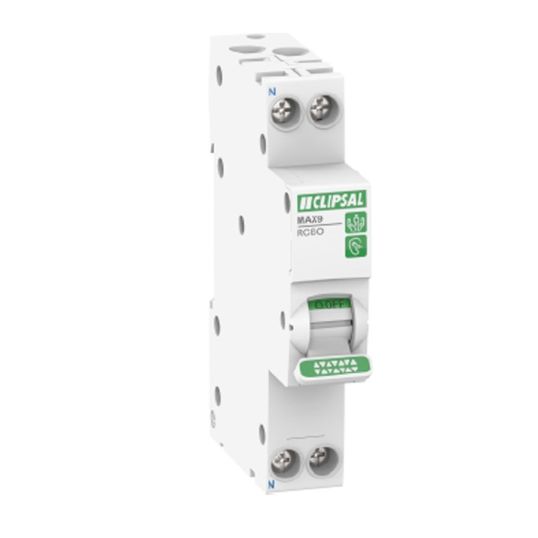

Clipsal Max9 RCBO 16A 30mA 240VAC 50/60Hz 6000A 1P + N Type A Slim

$Clipsal\Clipsal_MX9R3116.jpg$

Description

Residual Current Breaker with Overcurrent Protection (RCBO), 240 Volt, 16 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, C Curve, 1 + N Pole, 1-10 sq-mm Flexible/1-16 sq-mm Rigid (Top)/1-10 sq-mm Rigid/1-6 sq-mm Flexible (Bottom) Terminal, IP20, 25 to 70 deg C, 93 mm Height, 18 mm Width, 73 mm Depth

Key Specifications

Barcode (EAN-13)	9311554812690
SKU	CLIMX9R3116
Brand	Clipsal
Range Name	Max9
Product Type	Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	12
UNSPSC Class	39121600
UOM	EA
Vendor Product	MX9R3116
Depth	73 mm
Current	16 Amp
Frequency	50/60 Hz
Interrupt Capacity	6 kA
Height	93 mm
IP Rating	IP20
Number Of Poles	1 Pole
Temperature	25 to 70 deg C
Terminal Connection	1-10 sq-mm Flexible / 1-16 sq-mm Rigid (Top) / 1-10 sq-mm Rigid / 1-6 sq-mm Flexible (Bottom)
Voltage	240 Volt
Trip Characteristic	C Curve
Width	18 mm
Trip Sensitivity	30 mA
