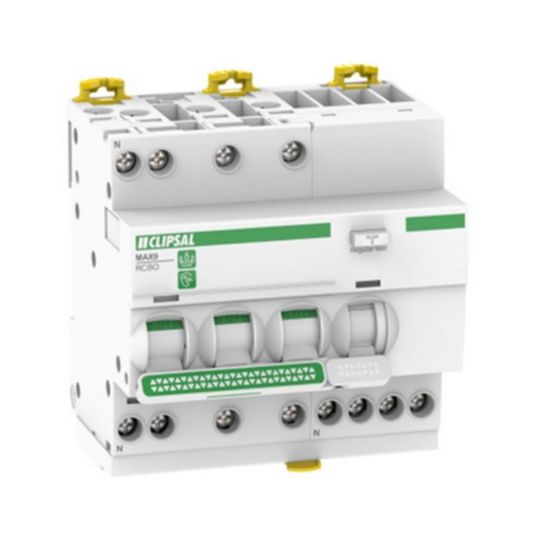

Clipsal MAX9 RCBO with Overcurrent Protection 3P+N 32A 30mA C Curve 6000A A Type 5 Module

$Clipsal\Clipsal_MX9R3532.jpg$

Description

Residual Current Breaker with Overcurrent Protection (RCBO), 415 Volt, 32 Amp at 30 deg C, 50 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, C Curve, 3 + N Pole, 5 Module, 1-10 sq-mm Flexible/1-16 sq-mm Rigid Terminal, Terminal Connection, IP20, 25 to 70 deg C, 95 mm Height, 90 mm Width, 75 mm Depth

Key Specifications

Barcode (EAN-13)	9311554813239
SKU	CLIMX9R3532
Brand	Clipsal
Range Name	Max9
Product Type	Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	MX9R3532
Connection Type	Terminal
Current	32 Amp at 30 deg C
Depth	75 mm
Frequency	50 Hz
Height	95 mm
IP Rating	IP20
Interrupt Capacity	6 kA
Number Of Poles	3 Pole
Modules	5 Module
Temperature	25 to 70 deg C
Terminal Connection	1-10 sq-mm Flexible / 1-16 sq-mm Rigid
Voltage	415 Volt
Trip Characteristic	C Curve
Width	90 mm
Trip Sensitivity	30 mA
