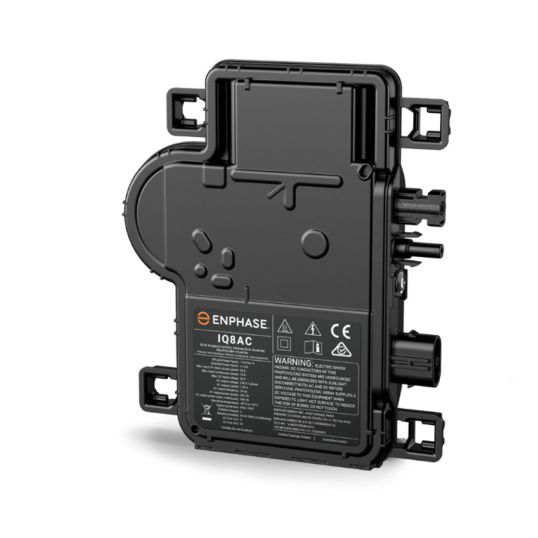

Enphase IQ8AC Microinverter 366 VA Peak Power MC4 DC Bulkhead

$Enphase\Enphase_IQ8AC-72-M-INT.jpg$

Description

Solar Microinverter, 1/Multi Phase Phase, 480 Watt DC Input, 36.5 Volt DC Input, 18-49 Volt DC Operating Voltage, 28-45 Volt DC MPPT Voltage Range, 22 Volt DC Start-up, 14 Amp DC Max. Input, 360 VA AC Output, 366 VA AC Max. Apparent, 50 Hz, 1.57 Amp AC Output, 1 (0.8 Leading-0.8 Lagging) Power Factor, <5% Total Harmonic Distortion, 0.973 Efficiency, 0.966 European Weighted Efficiency, Isolated (HF Transformer), <2600 mtr Max. Altitude, Natural Convection Cooling, AC: IQ Cabling/DC: Staubli MC4 Connection, IP67, -40 to 60 deg C

Key Specifications

SKU	ENPIQ8AC-72-M-INT
Brand	Enphase
Product Type	Solar Microinverter

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Compatible with latest-generation high-output PV modules Easy to install and commission High-energy production, reliability and safety
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	IQ8AC-72-M-INT
AC Operating Frequency	50 Hz
AC Max. Apparent Power	366 VA
AC Output Current	1.57 Amp
AC Output Power	360 VA
Cooling Method	Natural Convection
DC Input Voltage	36.5 Volt
DC Input Power	480 Watt
Connection Type	AC: IQ Cabling/DC: Staubli MC4
DC MPPT Voltage Range	28-45 Volt
DC Operating Voltage	18-49 Volt
DC Max. Input Current	14 Amp
DC Start-up Voltage	22 Volt
Height	212 mm
Depth	30.2 mm
European Weighted Efficiency	0.966
IP Rating	IP67
Efficiency	0.973
Max. Operating Altitude	<2600 mtr
Power Factor	1 (0.8 Leading-0.8 Lagging)
Operating Temperature	-40 to 60 deg C
Relative Humidity	4-100% (Condensing)
Topology	Isolated (HF Transformer)
Width	175 mm
Total Harmonic Distortion	<5%
