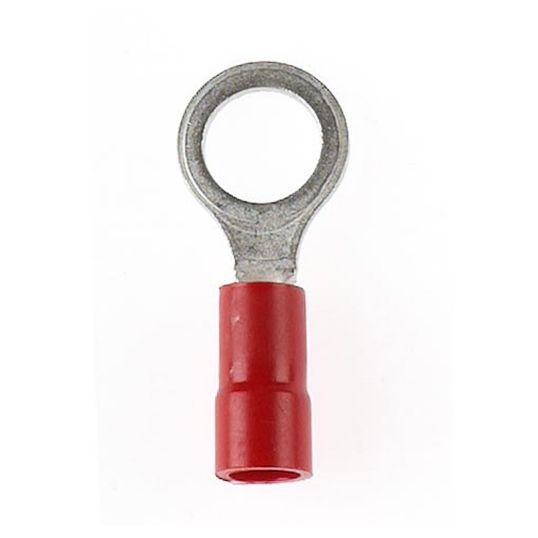

Cabac Ring Terminal Insulated Double Grip 0.5-1.6mm M6 Stud Red

Description

Ring Terminal Insulated Double Grip, 0.5-1.6 mm, M6 Stud, 600 Volt, 24 Amp, 4-5 mm Wire Strip Length, 200 Mpa Tensile Strength, 35% Ductile Rating, 1.738 micro-Ohm cm Resistivity, 99.5% IACS Conductivity, Copper Body, Annealed Copper, PVC Insulation, Red Insulation, Tin Electroplated, 75 deg C, 50 Pack

Key Specifications

Barcode (EAN-13)	9318674527343
SKU	CAART1.25-6DG
Brand	Cabac
Range Name	Pre-Insulated Terminals
Product Type	Forked & Ring Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Unique funnel entry that speeds wire termination - increasing reliability High quality product - meets international standards Funnel entry terminals allow easy conductor entry, minimising substandard crimps Long term electrical integrity Full technical back up including QA
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	RT1.25-6DG
Conductive Material	Annealed Copper
Body Material	Copper
Conductivity	99.5% IACS
Conductor Size	0.5-1.6mm
Current Rating	24 Amp
Insulation Colour	Red
Ductile Rating	35%
Finish	Tin Electroplated
Insulation Material	PVC
Pack Size	50 Pack
Resistivity	1.738 micro-Ohm/cm
Stud Size	M6
Temperature	75 deg C
Tensile Strength	200 MPa
Voltage Rating	600 Volt
Wire Strip Length	4-5 mm
