Hager Mounting Block Surface Insulated 1 Gang 37mm PVC White
Loading...
Description

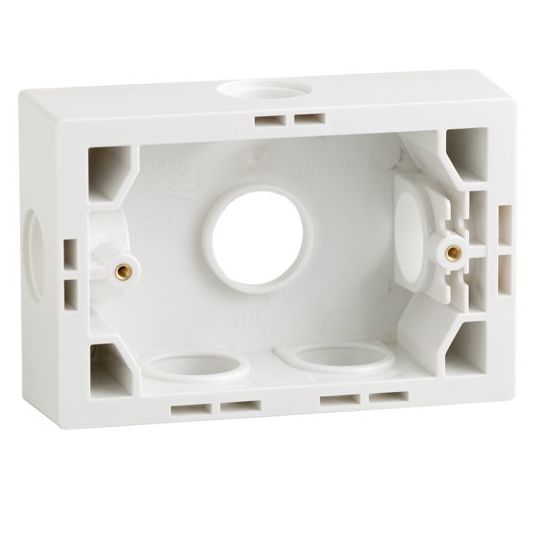

Mounting Block Insulated, 1 Gang, For Use With Premiere/Visage Large Plate Switches and Single/Twin Sockets, IP66, Surface Mounting, 84 mm Mounting Centres, Polycarbonate, White, Glossy, 80 mm Height, 120 mm Width, 37 mm Depth
Key Specifications
| Barcode (EAN-13) |
3250617000697
|
|---|---|
| SKU |
HAGWBBMI
|
| Brand |
Hager
|
| Product Type |
Mounting Blocks & Flanges
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | WBBMI |
| Depth | 37 mm |
| Colour | White |
| Height | 80 mm |
| For Use With | Premiere/Visage Large Plate Switches and Single/Twin Sockets |
| Finish | Gloss |
| IP Rating | IP66 |
| Material | Polycarbonate |
| Mounting Centres | 84 mm |
| Mounting Method | Surface |
| Number Of Gangs | 1 Gang |
| Width | 120 mm |
