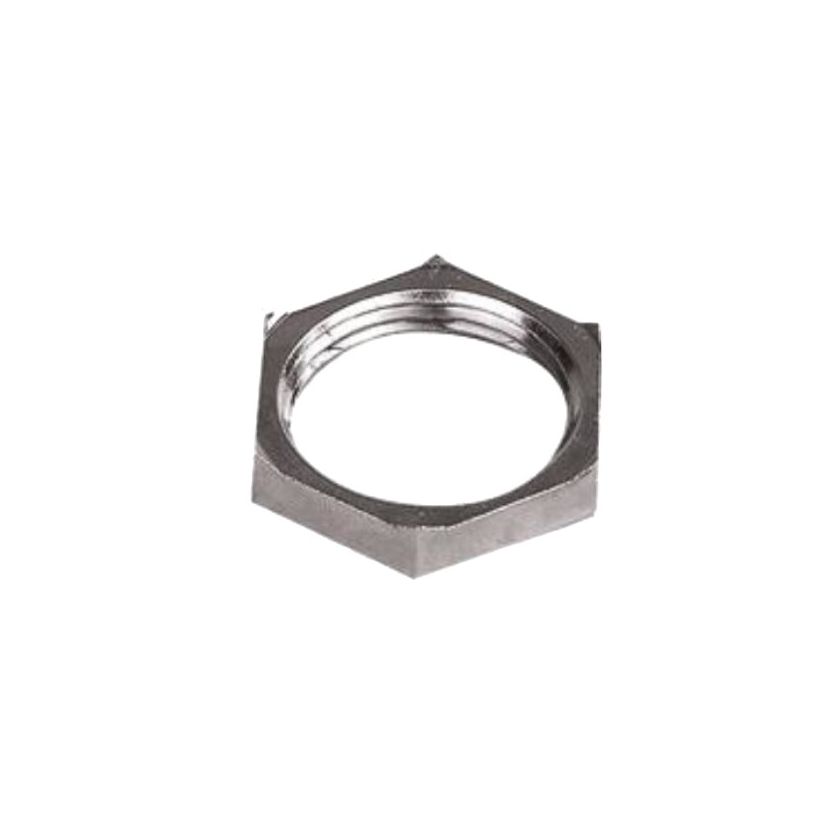

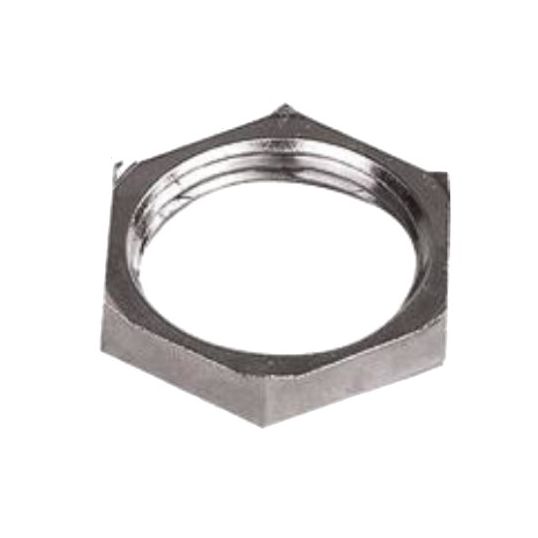

Lapp Kabel EMC Cable Gland Lock Nut Earth-Equipotential Hex M110 x 2 Nickel Plated Brass

Description

EMC Cable Gland Lock Nut, Earth-Equipotential, Hex, M110 x 2, 2 mm Pitch, 124 mm Width Across Flats, 135 mm Width Across Corners, Brass Body, Nickel Plated Finish, -20 to 100 deg C, 12 mm Depth

Key Specifications

SKU	LAP52103373
Brand	Lapp Kabel
Range Name	Skindicht SM-PE-M
Product Type	Gland Accessories

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Cutting edges cut through the insulating layer, thus guaranteeing an optimum EMC contact Suitable for all metric glands used in earthing and EMC applications For lacquered, anodized or powder-coated housings Good chemical resistance Mechanical resistance
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	52103373
Depth	12 mm
Finish	Nickel Plated
Temperature	-20 to 100 deg C
Thread Pitch	2 mm
Thread Size	M110 x 2
Width Across Corners	135 mm
Width Across Flats	124 mm
