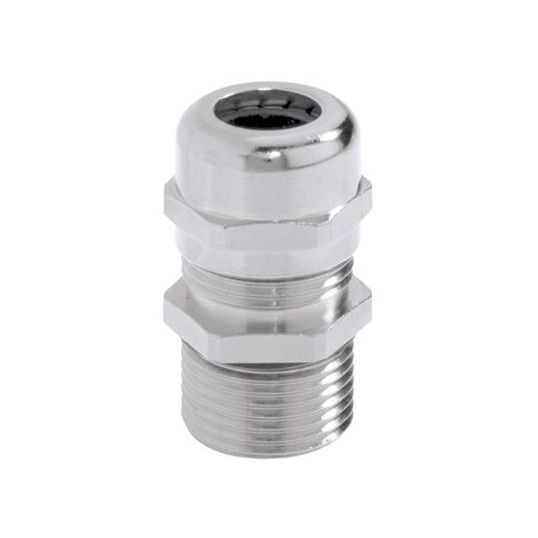

Cable Gland EMC XL Thread M32x1.5 11-21mm IP68

Product Code
LAP53112655
Std Pack Size
25

You need to be registered and logged in to view product details and pricing

Description

Cable Gland, EMC VSD Screened Cable, Extra Long Thread, M32 x 1.5, 15 mm Thread Length, 1.5 mm Pitch, 11 mm Min. Sheath OD, 21 mm Max. Sheath OD, IP68, CR Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed)
Cable Gland, EMC VSD Screened Cable, Extra Long Thread, M32 x 1.5, 15 mm Thread Length, 1.5 mm Pitch, 11 mm Min. Sheath OD, 21 mm Max. Sheath OD, IP68, CR Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed)

Additional Information

Additional Information
Brand Lapp Kabel
Range Name Skintop MS-SC-M-XL
Standard Pack Size 25
UNSPSC Class 39121400
UOM EA
Vendor Product 53112655
Temperature -25 to 100 deg C (Dynamic) -40 to 100 deg C (Fixed)
Please Note Extra Long Thread
Thread Size M32 x 1.5
Thread Length 15mm
IP Rating IP68
Finish Nickel Plated
Body Material Brass
Max. Sheath OD 21mm
Seal Material CR
Min. Sheath OD 11mm
Thread Pitch 1.5mm
