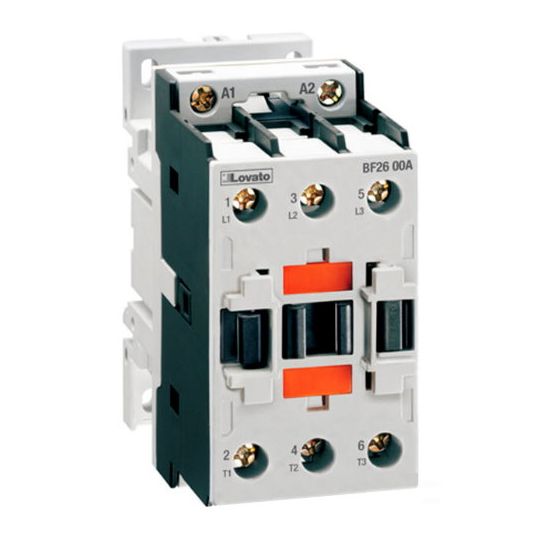

Lovato Contactor General Purpose AC Operated 3 Pole 11kW 25A AC3 32A AC1 24V 1NO Auxiliary DIN Rail/Base Mount

chevron-left
loader
Loading...

Description

chevron-down
Contactor General Purpose AC Operated, 24 Volt AC, AC3 Rating (kW): 11 at 55 deg C, AC3 Rating (Amps): 25, AC1 Rating (Amps): 32, 690 Volt, 1NO Auxiliary, 3 Pole, Screw Terminal, DIN Rail/Base Mount, IP20, -50 to 70 deg C, 126 mm Height, 45 mm Width, 80.7 mm Depth

Key Specifications

chevron-down
SKU
LOVBF2510A024
Brand
Lovato
Range Name
Orange BF
Product Type
Contactors General

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Three-pole contactors, 9 to 110A in AC3 duty
  • Four-pole contactors, 25 to 125 A in AC1 duty
  • Power factor correction contactors, 7.5 to 60 kv at 400 volt
  • Versions with 2NO+2NC or 4NC main power poles
  • Highly conductive auxiliary contacts
  • AC or DC auxiliary supply
  • Low-consumption versions for control relays and 9-38 A contactors in AC3 duty
Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product LOVBF2510A024
AC1 Rating (Amps) 32 Amp AC1
AC3 Rating (Amps) 25 Amp AC3
AC3 Rating (kW) 11 kW
Contact Voltage 690 Volt
Contact Configuration 1 Normally Opened Aux
Depth 80.7 mm
Height 126 mm
IP Rating IP20
Mounting Method DIN Rail/Base
Number Of Poles 3 Pole
Operating Coil Voltage 24 Volt AC
Temperature -50 to 70 deg C
Terminal Connection Screw
Width 45 mm
