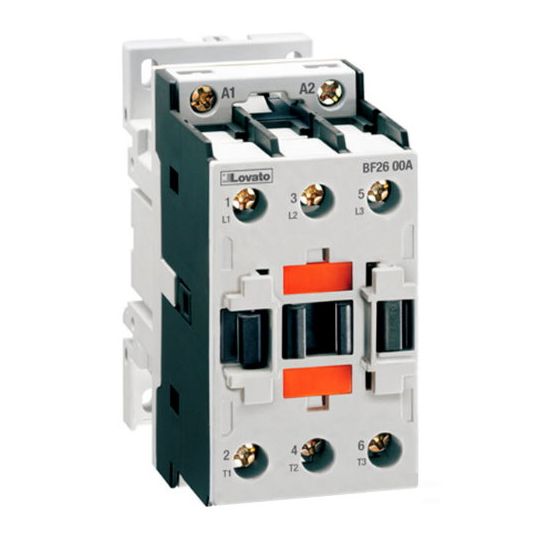

Contactor GP DC Operated 3P 22kW 32A AC3 56A AC1 24VDC

Lovato Contactor General Purpose DC Operated 3 Pole 22kW 32A AC3 56A AC1 24VDC DIN Rail/Base Mount


Std Pack Size

You need to be registered and logged in to view product details and pricing

Contactor General Purpose DC Operated, 24 Volt DC, AC3 Rating (kW): 22 at 55 deg C, AC3 Rating (Amps): 32, AC1 Rating (Amps): 56, 690 Volt, 3 Pole, Screw Terminal, DIN Rail/Base Mount, IP20, -50 to 70 deg C, 134.8 mm Height, 45 mm Width, 107.5 mm Depth

Additional Information

Additional Information
Brand Lovato
Range Name Orange BF
Standard Pack Size 1
UNSPSC Class 39121500
Vendor Product LOVBF3200D024
AC1 Rating (Amps) 56 Amp AC1
AC3 Rating (Amps) 32 Amp AC3
AC3 Rating (kW) 2.2 kW
Contact Voltage 690 Volt
Height 134.8 mm
IP Rating IP20
Depth 107.5 mm
Number Of Poles 3 Pole
Mounting Method DIN Rail/Base
Operating Coil Voltage 24 Volt DC
Temperature -50 to 70 deg C
Product Type Contactors General
Width 45 mm
Terminal Connection Screw
