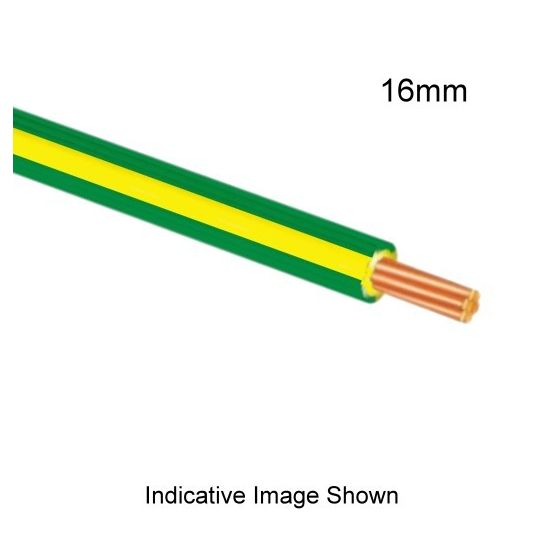

Olex 16mm Building Wire Green/Yellow 1mtr

Description

Building Wire, 16 mm, Stranded Copper, 0.6-1 kV, 7/1.7 mm Strands, 6.9 mm Overall Diameter, 1 mtr Length, 1 mm Insulation Thickness, 1.1 kN Pulling Tension, DC: 1.15 Ohm/km AC: 1.4 Ohm/km Conductor Resistance, 6 MOhm/km Insulation Resistance, V-90 PVC Insulation, Green/Yellow Insulation, 90 deg C, AS/NZS 1125 AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	9319215008710
SKU	OLX7/170BWEWA5
Brand	Olex
Product Type	Building Wire

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121614
UOM	MTR
Vendor Product	BAAP15A1001AAHN
Conductor Type	Stranded Copper
Conductor Resistance	DC: 1.15 Ohm/km AC: 1.4 Ohm/km
Insulation Colour	Green/Yellow
Insulation Resistance	6 MOhm/km
Insulation Thickness	1 mm
Insulation Material	V-90 PVC
Overall Diameter	6.9 mm
Pulling Tension	1.1 kN
Stranding	7/1.7 mm
Standards	AS/NZS 1125 AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
Conductor Size	16 mm
