Std Pack Size
305
OUR P/N:
PIRL4P6BU

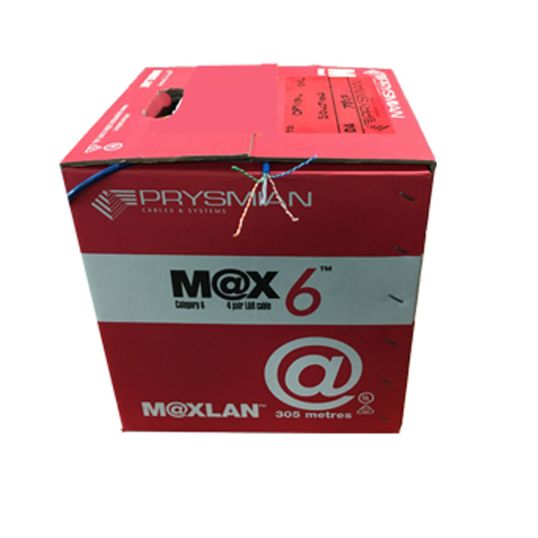

UTP Data Cable Cat6 4 Pair, 24 AWG, 0.51mm Conductor Diameter, 9.38 Ohm/100 mtr Conductor Resistance, Stranding: 1/0.57mm, Bend Radius: 50mm, 190 N Max. Pulling Force, 4 Pair, 250 MHz Bandwidth, Cat6 UTP Cable, Annealed Solid Copper Wire Conductor, Polyethylene Insulation, Flame Retardant PVC(75 deg C) Sheath, Blue (RAL 5019) Sheath,-20 to 60 deg C, 305 mtr Length, 6mm Outside Diameter
Additional Information
| Brand | Prysmian |
|---|---|
| Standard Pack Size | 305 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 60056123 |
| Product Type | Cat6 Cable |
| Max. Pulling Force | 190 N |
| Pair Count | 4 Pair |
| Sheath Material | Flame Retardant PVC |
| Frequency Bandwidth | 250 MHz |
| Stranding | 1/0.57mm |
| Cable Type | Cat6 UTP |
| Insulation Material | Polyethylene |
| Length | 305 mtr |
| Outside Diameter | 6mm |
| Sheath Colour | Blue |
| Bend Radius | 50mm |
| Conductor Diameter | 0.51mm |
| Conductor Size | 24 AWG |
| Conductor Resistance | 9.38 Ohm/100 mtr |
| Conductor Material | Annealed Copper |
| Temperature | -20 to 60 deg C |
