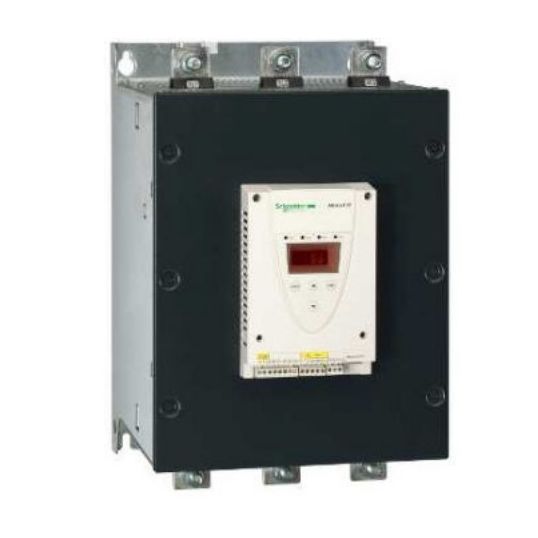

Schneider Motor Starter Soft Start Soft Stop 3 Phase 250kW 415V

Description

Motor Starter Soft Start Soft Stop 3 Phase, 230-440 Volt, 437 Amp, 50/60 Hz, 250 kW, 230 Volt, 3 Phase, IP00, Start With Torque Control, -10 to 40 deg C/40 to 60 deg C, 455 mm Height, 304 mm Width, 339.7 mm Depth

Key Specifications

Barcode (EAN-13)	3606480211294
SKU	TEEATS22C48Q
Brand	Schneider
Range Name	Altistart 22
Product Type	Motor Starters Soft Start

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	ATS22C48Q
Current	437 Amp
Depth	339.7mm
Frequency	50/60 Hz
Height	455mm
IP Rating	IP00
Phase	3 Phase
Starting Modes	Start With Torque Control
Supply Voltage	230-440 Volt
Temperature	-10 to 40 deg C/40 to 60 deg C
Wattage	250 kW
Width	304mm
