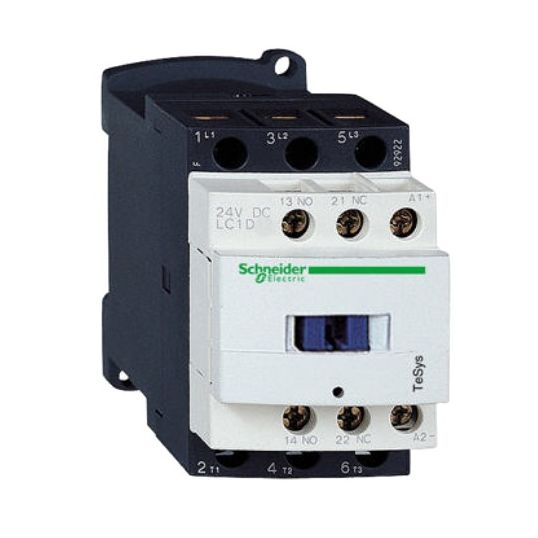

Contactor GP 3P 5.5kW 12A AC3 25A AC1 110VDC 1NO-1NC

Schneider Contactor General Purpose DC Operated 3 Pole 12A AC3 25A AC1 110VDC 1NO-1NC Auxilary DIN Rail/Plate Mount


Std Pack Size

You need to be registered and logged in to view product details and pricing

Contactor General Purpose DC Operated, 110 Volt DC, AC3 Rating (kW): 5.5, AC3 Rating (Amps): 12 at 440 Volt AC, AC1 Rating (Amps): 25 at 440 Volt AC, 690 Volt AC, 300 Volt DC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 53.55-72.45 ms Closing, 16-24 ms Opening, Screw Clamp, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 77 mm Height, 45 mm Width, 95 mm Depth

Additional Information

Additional Information
Brand Schneider
Range Name TeSys Model D
Standard Pack Size 1
UNSPSC Class 39121500
Vendor Product LC1D12FD
AC1 Rating (Amps) 25 Amp AC1
AC3 Rating (Amps) 12 Amp AC3
AC3 Rating (kW) 5.5 kW
Contact Configuration 1 Normally Opened & 1 Normally Closed Aux
Contact Voltage 690 Volt AC/300 Volt DC
Height 77 mm
IP Rating IP20
Depth 95 mm
Number Of Poles 3 Pole
Mounting Method DIN Rail/Plate
Operating Coil Voltage 110 Volt DC
Operating Time 53.55-72.45 ms Closing/16-24 ms Opening
Temperature -40 to 60 deg C
Product Type Contactors General
Width 45 mm
Terminal Connection Screw Clamp
