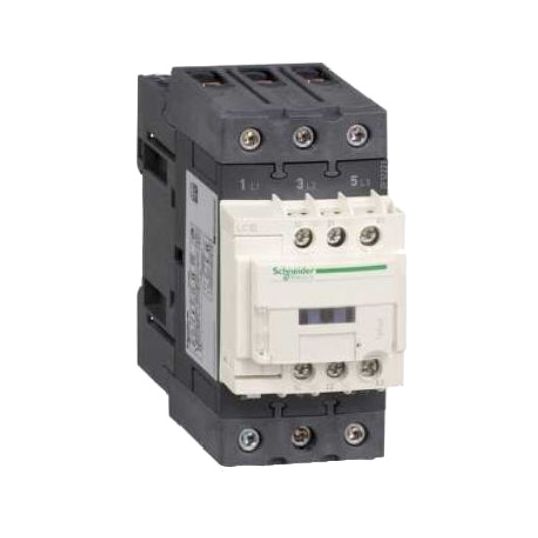

Contactor GP 3P 37kW 65A AC3 80A AC1 415V 1NO-1NC

Schneider Contactor General Purpose AC Operated 3 Pole 37kW 65A AC3 80A AC1 415V 1NO-1NC Auxilary DIN Rail/Plate Mount

PRODUCT CODE:
TEELC1-D65AN7

Std Pack Size
1
OUR P/N:
TEELC1-D65AN7

You need to be registered and logged in to view product details and pricing

Contactor General Purpose AC Operated, 415 Volt AC, AC3 Rating (kW): 37, AC3 Rating (Amps): 65, AC1 Rating (Amps): 80 at 440 Volt, 690 Volt AC, 300 Volt DC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 12-26 ms Closing, 4-19 ms Opening, Screw Clamp, EverLink BTR Screw, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 122 mm Height, 55 mm Width, 120 mm Depth

Additional Information

Additional Information
Brand Schneider
Range Name TeSys Model D
Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product LC1D65AN7
AC1 Rating (Amps) 80 Amp AC1
AC3 Rating (Amps) 65 Amp AC3
AC3 Rating (kW) 37 kW
Contact Configuration 1 Normally Opened & 1 Normally Closed Aux
Contact Voltage 690 Volt AC/300 Volt DC
Height 122 mm
IP Rating IP20
Depth 120 mm
Number Of Poles 3 Pole
Mounting Method DIN Rail/Plate
Operating Coil Voltage 415 Volt AC
Operating Time 12-26 ms Closing/4-19 ms Opening
Temperature -40 to 60 deg C
Product Type Contactors General
Width 55 mm
Terminal Connection Screw Clamp, EverLink BTR Screw
