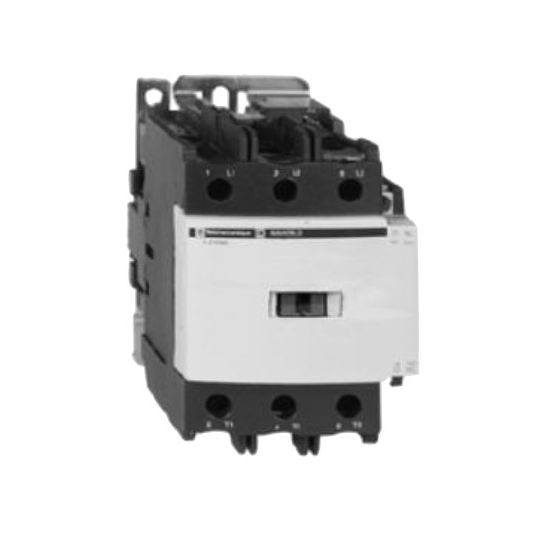

Contactor GP 3P 37kW 65A AC3 80A AC1 240V 1NO-1NC

Schneider Contactor General Purpose AC Operated 3 Pole 37kW 65A AC3 80A AC1 240V 1NO-1NC Auxilary DIN Rail/Plate Mount


Std Pack Size

You need to be registered and logged in to view product details and pricing

Contactor General Purpose AC Operated, 240 Volt AC, AC3 Rating (kW): 37, AC3 Rating (Amps): 65, AC1 Rating (Amps): 80 at 440 Volt, 690 Volt AC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 12-26 ms Closing, 4-19 ms Opening, Screw Clamp, DIN Rail/Plate Mount, IP2X, -60 to 80 deg C, 127 mm Height, 75 mm Width, 119 mm Depth

Additional Information

Additional Information
Brand Schneider
Range Name TeSys Model D
Standard Pack Size 1
UNSPSC Class 39121500
Vendor Product LC1D65U7
AC1 Rating (Amps) 80 Amp AC1
AC3 Rating (Amps) 65 Amp AC3
AC3 Rating (kW) 37 kW
Contact Configuration 1 Normally Opened & 1 Normally Closed Aux
Contact Voltage 690 Volt AC
Height 127 mm
IP Rating IP2X
Depth 119 mm
Number Of Poles 3 Pole
Mounting Method DIN Rail/Plate
Operating Coil Voltage 240 Volt AC
Operating Time 12-26 ms Closing/4-19 ms Opening
Temperature -60 to 80 deg C
Product Type Contactors General
Width 75 mm
Terminal Connection Screw Clamp
