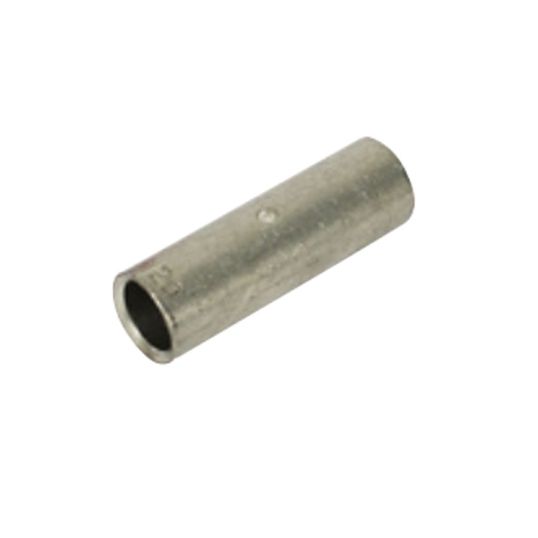

Hellermann Tyton Crimp Link Standard Copper 185mm 65mmL

Description

Our Copper Links are designed for general-purpose copper conductor applications. They comply with the Australian and New Zealand Standard AS/NZS 4325 Part 1:1995. These links are manufactured from 99.9%+ pure, high-conductivity annealed copper, ensuring optimal electrical properties. They are ideal for use in applications such as connecting electrical wiring in industrial machinery or electrical panels. A crimping tool is recommended for this application.

Key Specifications

Barcode (EAN-13)	9349519001544
SKU	HMYCS185
Brand	Hellermann Tyton

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Made from high conductivity annealed copper Wide range of sizes Can be crimped using cable lug crimper or hammer style crimper Easy insertion of cable
Standard Pack Size	20
UNSPSC Class	39121400
UOM	EA
Vendor Product	CS185
A-F Hex Die	20 mm
Body Material	Copper
Conductive Material	Copper
Conductivity	99.9% IACS
Conductor Size	185 mm
Crimping Die	HD16L/HD0560AU/HD06120AU/HYCP400/DIECU16
Ductile Rating	40%
Inside Diameter	18.4 mm
Number of Strands	37/2.52
Outside Diameter	7.9 mm
Overall Length	65 mm
Resistivity	1.72 micro-Ohm/cm
Temperature	-55 to 155 deg C
Tensile Strength	205 Mpa
