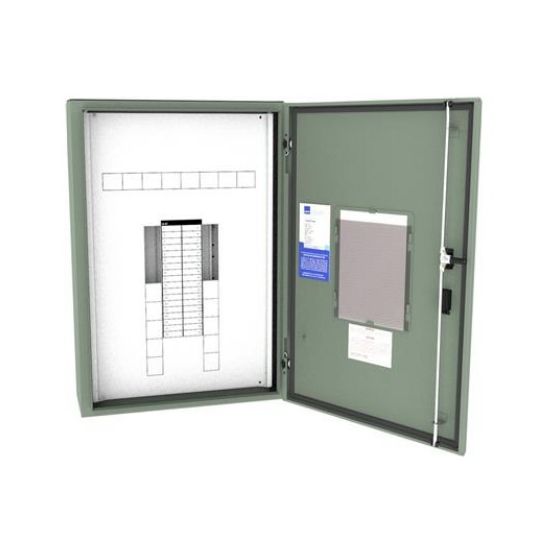

NHP Din-T Modular MCB Panelboard W/O Main Switch 72P 1.6mm Mild Steel Grey IP30 IP66

Description

Modular MCB Panelboard Without Main Switch, 240 Volt AC at 1 Ph, 415 Volt AC at 3 Ph, 250 Amp Busbar, Number of Poles: 72, Semi Flush Lockable Door, For Use With: MCBs, IP30, IP66, 1.6mm Mild Steel, Grey, Powder Coated, 1296mm Height x 600mm Width x 240mm Depth

Key Specifications

SKU	NHPCPR72G
Brand	NHP
Range Name	Concept Premier Din-T
Product Type	Panelboards MCB

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Partial type tested busbar system 400 Amp Isolator main switch option Isolator or circuit breaker main switch option Modular sizes up to 96-way 1.6 mm fully welded construction Stainless steel option Accessory modules Removable gland plates Door fitted independent of escutcheon Removeable hinged escutcheon
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	CPR72G
Colour	Grey
Configuration	DIN 5M-1080mm
Current	250 Amp
Dimensions	1296mm Height x 600mm Width x 240mm Depth
Door Type	Semi Flush Lockable
Finish	Powder Coated
IP Rating	IP30/66
Material	1.6mm Mild Steel
Number Of Poles	72P
Voltage	240-415 Volt
