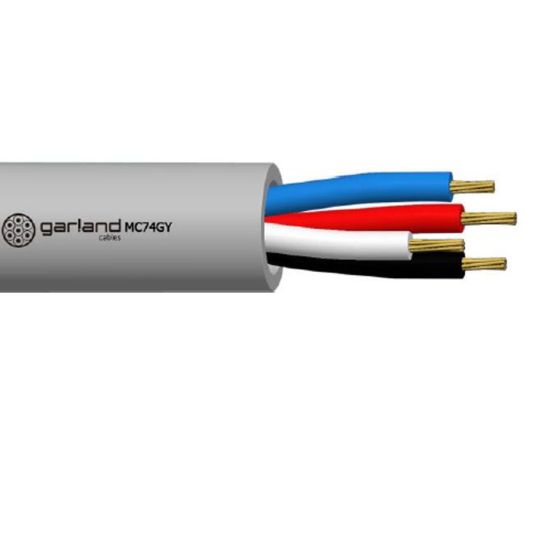

Garland Pro Series Security Cable Unscreened 4 Core 0.22mm 7/0.2mm PVC/PVC Grey

Description

Security Cable, Unscreened, 4 Core, 0.22 mm, Tinned Copper, 7/0.2 mm Strands, 3.6 mm Overall Diameter, Bend Radius: Static: - 36 mm, 0.28 mm Insulation Thickness, 0.36 mm Sheath Thickness, Elongation: Insulation - >100%, Outer Sheath - >100%, 56 N Pulling Tension, Before Aging - >12 MPa Tensile Strength, Conductor Resistance: 93.3 Ohm/km, Insulation Resistance: 50 MOhm/km, PVC Insulation, PVC Sheath, White Blue Red Black Cores, Grey RAL 7046 Sheath, -15 to 70 deg C, AS/ACIF S008, BS4737-3.30, AS 1049

Key Specifications

Barcode (EAN-13)	9329849005573
SKU	GARMC74GY100
Brand	Garland
Product Type	Security Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MC74GY100
Bend Radius	Static 36 mm
Conductor Resistance	93.3 Ohm/km
Conductor Size	0.22 mm
Conductor Type	Tinned Annealed Copper
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Material	PVC
Insulation Resistance	50 MOhm/km
Insulation Thickness	0.28 mm
Number of Cores	4 Core
Overall Diameter	3.6 mm
Pulling Tension	56 N
Sheath Colour	Grey
Sheath Material	PVC
Sheath Thickness	0.36 mm
Standards	AS/ACIF S008 BS3737-3.30 AS 1049
Stranding	7/0.2 mm
Temperature	-15 to 70 deg C
Tensile Strength	Before Aging: >12 MPa
