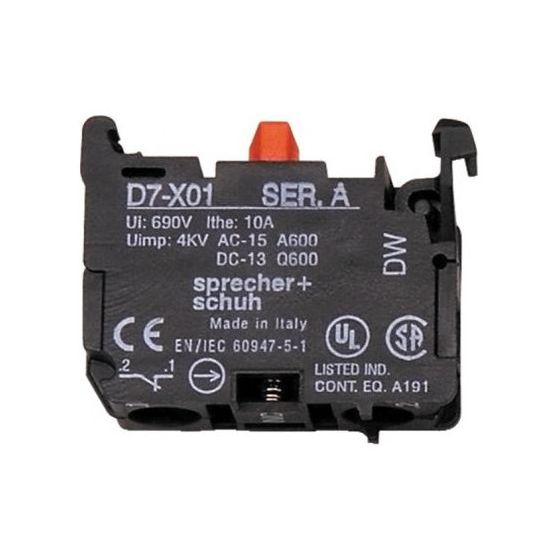

Sprecher+Schuh Operator Contact Block With Screw Terminals 1N.C 110-120/240/125V Panel Mount

chevron-left
loader
Loading...

Description

chevron-down
Operator Contact Block, 690 Volt AC/DC, 10 Amp, 1 Normally Closed Configuration, Screw Terminal, Panel Mounting, IP65/66, 22.5 mm

Key Specifications

chevron-down
Barcode (EAN-13)
9321807223968
SKU
S&SD7-X01
Brand
Sprecher+Schuh
Range Name
D7
Product Type
Operator Contact Blocks

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • D7 pilot devices offer maximum flexibility and a wide choice for all 22.5 mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations
  • Aesthetically appealing and modularly designed to make assembly and interchangeability easy
  • Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments
  • D7P is a plastic operator with a captive black plastic front bezel
  • Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments and strong chemical resistance
  • D7M has a die-cast zinc housing and mounting ring for rugged durability
  • Finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product D7X01
Contact Configuration 1 Normally Closed
Current 10 Amp
IP Rating IP65/66
Mounting Method Panel
Size 22.5 mm
Terminal Connection Screw
Voltage 690 Volt AC/DC
