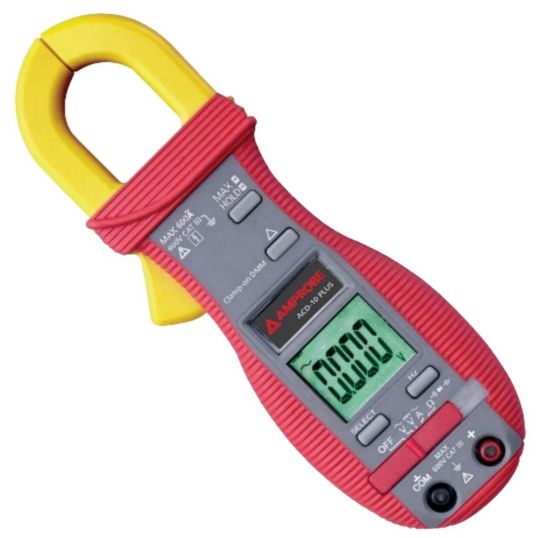

Amprobe ACD Series Digital Clamp Multimeter 600VAC/DC/400mVDC 600A AC

Description

Digital Clamp Multimeter, 4 Volt/40 Volt/400 Volt/600 Volt AC/DC, 400 mV DC, 40/400/600 Amp AC, 400 Ohm/4 kOhm/40 kOhm/400 kOhm/4 MOhm/40 MOhm, 3 Volt Coin Battery, 0 to 40 deg C, LCD Display, 500 nF/5 uF/50 uF/500 uF/3000 uF Range, +/-1.5 % + 5/+/-2 + 5 AC, +/-0.3 % + 4/+/-0.5 % + 4/+/-1 % + 4 DC Accuracy, 190 x 63 x 32mm

Key Specifications

Barcode (EAN-13)	095969417457
SKU	AMPACD-10PLUS
Brand	Amprobe
Range Name	ACD Series

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Measure AC current up to 2000A Up to 45 mm jaw size AS61010 compliant to Cat III, 600V True RMS versions for more accurate readings ACD-14 is great for HVAC applications All models except for ACD-6 & ACD-10 measure frequency ACD-6 is the economical option
Standard Pack Size	1
UNSPSC Class	41113600
UOM	EA
Vendor Product	AMPACD-10PLUS
Current	40-400-600 Amp AC
Dimensions	190 x 63 x 32mm
Display Type	LCD
Power Supply	3 Volt Coin
Product Type	simple
Resistance	400 Ohm/4 kOhm/40 kOhm/400 kOhm/4 MOhm/40 MOhm
Temperature	0 to 40 deg C
Voltage	400 mV DC-4-40-400-600 Volt AC/DC
