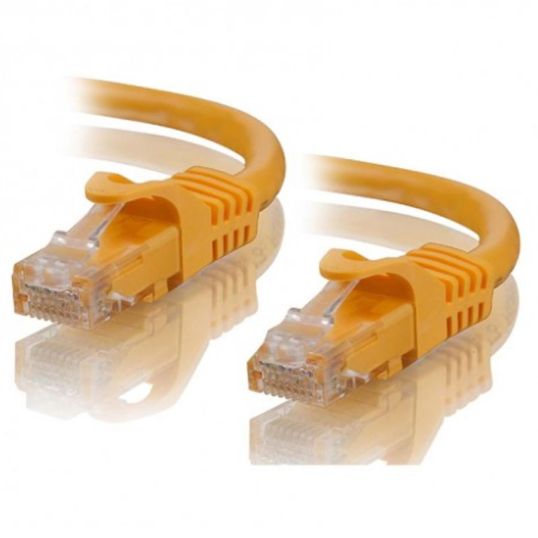

Serveredge Network Cable Cat6 24AWG 1M PVC Yellow

chevron-left
loader
Loading...

Description

chevron-down
Serveredge CAT 6 snag less patch cables are ideal to handle ultra-high speed and multi-gigabit protocols to transfer large volumes of voice, data, video and communications signals. Serveredge CAT 6 cables can help to improve the networks speeds by reducing impedance loss and network return loss in your network by as much as 40%. The cables consist of 4 pairs of 24 AWG insulated copper conductors separated by a cross to maintain a uniform distance between them which leads to improved cross talk performance, low insertion loss and higher data rates. Gold plated connectors ensure crystal clear transmission and the custom designed snag less boot protects the cable from any damage during installation.

Key Specifications

chevron-down
Barcode (EAN-13)
9319866027337
SKU
SEVC6-01-YELLOW
Brand
Serveredge

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • All Serveredge CAT 6 cables are A-Tick compliant with ACMA requirements
  • Supports 10/100/1000 Base-T applications
  • Constructed from high quality cable and a shortened body plug, this design minimizes Near-End Crosstalk (NEXT) levels.
  • Meets and exceeds all CAT 6 TIA/EIA-568-B-2.1, draft 9 standards
  • 50 micron gold-plated connectors to ensure clear transmissions
  • Snag less moulded connectors to protect the RJ45 retaining clips from damage during installation
  • Warranty: Lifetime
Standard Pack Size 1
UNSPSC Class 26121600
UOM EA
Vendor Product C6-01-YELLOW
Cable Type Cat 6
Conductor Size 24 AWG
Conductor Type RJ45 (8P8C)
Conductor Material Stranded Bare Copper
Insulation Material 50 micron Gold Plated
Sheath Colour Yellow
Sheath Material PVC
Stranding 7/0.2 mm
Temperature 60 deg C
Voltage 30 Volt
