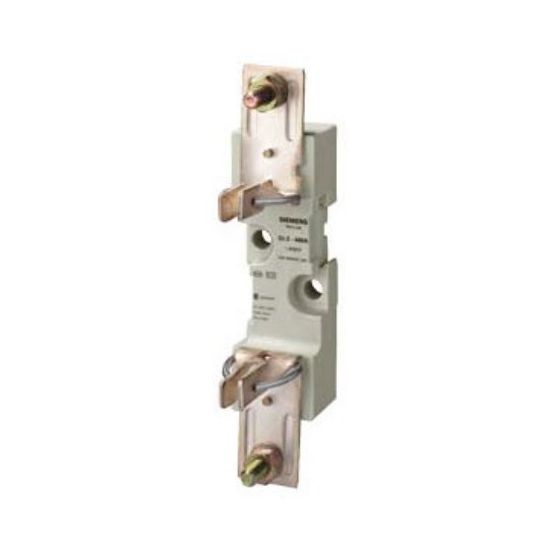

Siemens Open Fuse Base LV HRC 1 Pole DIN Size 2 400A 690VAC 25 kA
Loading...
Description
Open Fuse Base LV HRC, 690 VAC, 400 Amp, 2.5 to 50 mm Cable, Number of Poles: 1 Pole, M10 Screw Connection, Rated Breaking Capacity: 25 kA, Fixed Mounting, 227mm Height x 49mm Width x 90mm Depth, DIN Size 2
Key Specifications
| SKU |
SIE3NH3330
|
|---|---|
| Brand |
Siemens
|
| Product Type |
Fuse Bases
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | 3NH3330 |
| Cable Size | 2.5-50 sq-mm |
| Connection Type | M10 Screw |
| Current | 400 Amp |
| Dimensions | 227 mm Height x 49 mm Width x 90 mm Depth |
| Mounting Method | Fixed |
| Number Of Poles | 1 Pole |
| Standard Reference | DIN Size 2 |
| Rated Breaking Capacity | 25 kA |
| Voltage | 690 Volt AC |
