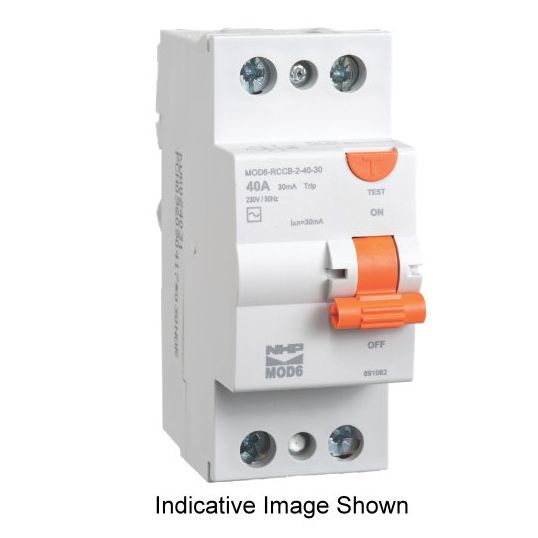

NHP Safety Switch RCCB Instantaneous Type AC 2Pole 40A 240V 6kA 30mA 2Module 36mm DIN Rail Mount

Description

Safety Switch RCCB Instantaneous Type, 240 Volt, 40 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, 2 Modules, 36mm Module Width, 2 Poles, C Curve Trip Characteristic, Fork/Pin Terminal, IP40 Inside/IP20 Outside, DIN Rail, 10000 Cycles, 20000 Cycles Mechanical Durability, 1-35 mm Flexible/1-50 mm Rigid Conductor Conductor, 5 N/m Tightening Torque,-5 to 55 deg C, 86mm Height x 36mm Width x 76mm Depth

Key Specifications

Barcode (EAN-13)	5413656910626
SKU	NHPMOD6RCCB24030
Brand	NHP
Range Name	MOD6
Product Type	Safety Switches RCCB

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	MOD6RCCB24030-NLA
Conductor Size	1-35 sq-mm Flexible - 1-50 sq-mm Rigid Conductor
Current	40 Amp
Depth	76 mm
Height	86 mm
Electrical Life	10000 Cycles
Frequency	50/60 Hz
Interrupt Capacity	6 kA
IP Rating	IP40/20
Mechanical Durability	20000 Cycles
Modules	2 Module 36mm
Mounting Method	DIN Rail
Number Of Poles	2 Pole
Terminal Type	Fork/Pin
Tightening Torque	5 Nm
Temperature	-5 to 55 deg C
Width	36 mm
Trip Sensitivity	30 mA
Voltage	240 Volt
