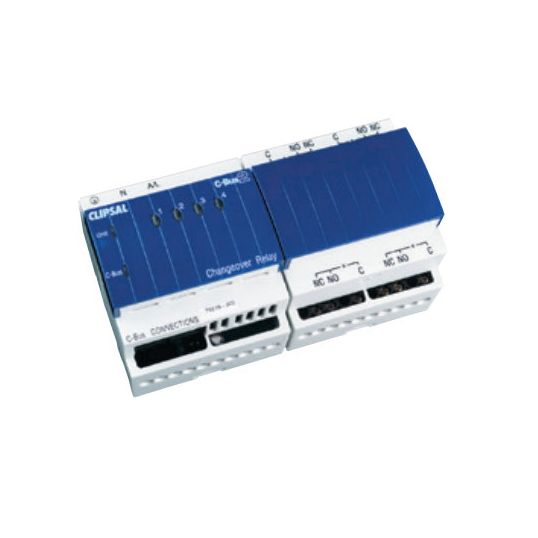

Clipsal C-Bus Changeover Relay DIN Rail Mount 4 Channel 250V 200mA with Power Supply

Description

Changeover Relay, 250 Volt, Supply: 15-36 Volt DC, 200 mA, Number of Channels: 4, Number of Modules: 8, Terminal Type: Screw, Mounting Method: DIN Rail, 144mm Width, 85mm Height, 65mm Depth

Key Specifications

Barcode (EAN-13)	9311554565480
SKU	CLIL5504RVFC
Brand	Clipsal
Range Name	C-Bus
Product Type	Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	4-channel changeover relay with interlock features, DIN rail-mounted 8M DIN modules wide Used for control of air conditioning systems (ON/ OFF, low, medium and high) and shutter or blind control (UP/DOWN) The unit can be simply wired to achieve electrical interlocking, for use where outputs are all mutually exclusive Rated at 10Amp resistive, 5Amp incandescent/inductive, 1Amp fluorescent per channel Incorporates a software selectable network burden and C-Bus system clock A maximum of 10 units may be connected to any C-Bus network Incorporates an inbuilt 200mA C-Bus power supply C-Bus Learn Enabled
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	L5504RVFC
Channels	4 Channel
Current	200 mA
Depth	65 mm
Height	85 mm
Mounting Method	DIN Rail
Terminal Type	Screw
Voltage	250 Volt
Width	144 mm
