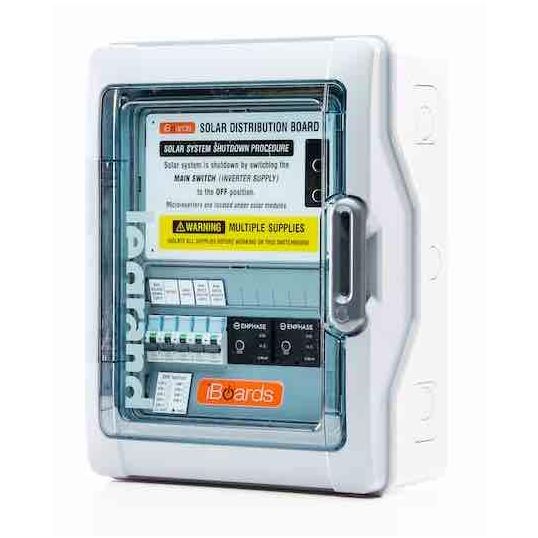

Single Phase Dual Relay Outdoor Board

Components * IP65 rated surface mount enclosure for outdoor installations * 63 amp 1 phase Main switch * 10 amp 1 phase MCB for Envoy * 2 x 20 amp 1 phase MCB’s for solar circuit’s * 20 amp 1 phase MCB ready for battery installation * Supplied and pre-installed Envoy * 2 x supplied and pre-installed IQ relay’s (Single Phase) * Supplied and pre-installed 100 amp Production CT Wiring * Completely pre-wired with neat cable management * All wiring boot lace crimped for solid, safe & secure terminations * Production CT securely mounted and pre wired inside enclosure * Consumption CT cabling installed from Envoy to large terminal strips inside the enclosure to make connection of the Consumption CT cabling fast & easy * Maximum 24 x IQ7x Micro Inverters OR 26 x IQ7+ Micro Inverters OR 32 x IQ7 Micro Inverters Programming * Latest Enphase software CT and IQ relay configured and pre-programmed saving up to 1 hour onsite * Precisely located holes provide easy access to AP mode and device scan buttons * Envoy serial number labelled inside door for ease of installation & commissioning * Neat clear window for viewing LED communication lights * Every iBoard is fully bench tested and quality checked prior to dispatch Labelling * Labelled using UV stabilised quality labels to AS5033/4777 standards * Labels for main switch board included * AC battery label kit included Additional * Removable chassis rack for easy mounting to wall & easy cable Installation keeping dust out of components during installation * Enough room to fit the Enphase Mobile Connect module inside * Optional locking accessory for securing the door * Quality Legrand Enclosure, terminals and MCBs * Original pole fillers used to match the enclosure colour * No screws to lose - with Captive screw design * Installation Manual included * 5 Years Warranty on parts Dimensions H 435mm W 340mm D 165mm
