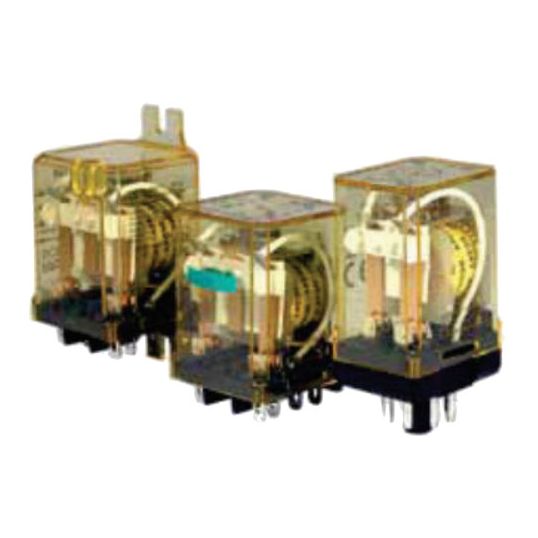

IDEC General Purpose Relay Plug-In Mount 2P DPDT 10A 240V 8 Pin Round

Description

General Purpose Relay, 240 Volt AC, 240 Volt AC, 10 Amp, 1.5 Watt, 8 Pin Round, 2 Pole, DPDT, 8330 Ohm, Operating Time: 25 Operate/Release ms, Plug-In Mount, Silver, -25 to 40 deg C, 35.6 mm Height, 55.5 mm Width, 28.6 mm Depth

Key Specifications

Barcode (EAN-13)	9322017188559
SKU	IDCRR2P-UAC240
Brand	IDEC
Product Type	Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High reliability and long service life Worldwide approvals on octal (8-pin and 11-pin) models Without LED
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	RR2P-UAC240
Contact Configuration	DPDT
Depth	28.6 mm
Height	35.6 mm
Current	10 Amp
Mounting Method	Plug In
Contact Material	Silver
Number Of Poles	2 Pole
Operating Coil Voltage	240 Volt AC
Pin Configuration	8 Pin Round
Operating Time	25 Operate/Release ms
Power Rating	1.5 Watt
Resistance	8330 Ohm
Temperature	-25 to 40 deg C
Voltage	240 Volt AC
Width	55.5 mm
