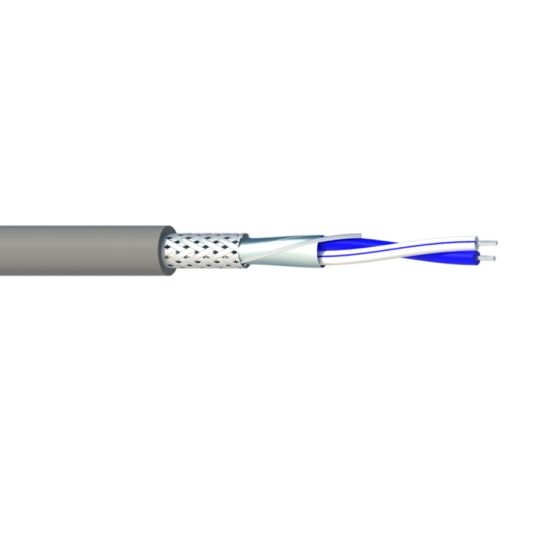

Maser Greenstar Data Cable 1 Pair 24AWG TC/O/Shield PVC RS-485 Grey

Description

Data Cable, 24 AWG, Tinned Copper, 300 Volt, 1 Pair, 7/0.2 mm Strands, 5.9 mm +/-0.15 mm Overall Diameter, 0.6 mm +/-0.05 mm Insulation Thickness, 78.8 Ohm/km Conductor Resistance, Aluminium Foil/Polyester Tape Screen, PVC Sheath, Grey Sheath, -30 to 80 deg C, TC/O/Shield RS-485

Key Specifications

SKU	MSRMAS1PRS485
Brand	Maser
Range Name	Greenstar
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MAS1PRS485
Conductor Resistance	78.8 Ohm/km
Conductor Size	24 AWG
Conductor Type	Tinned Copper
Insulation Thickness	0.6 mm +/-0.05 mm
Number of Pairs	1 Pair
Overall Diameter	5.9 mm +/-0.15 mm
Please Note	TC/O/Shield RS-485
Screen Material	Aluminium Foil/Polyester Tape
Sheath Colour	Grey
Sheath Material	PVC
Stranding	7/0.2 mm
Temperature	-30 to 80 deg C
Voltage	300 Volt
