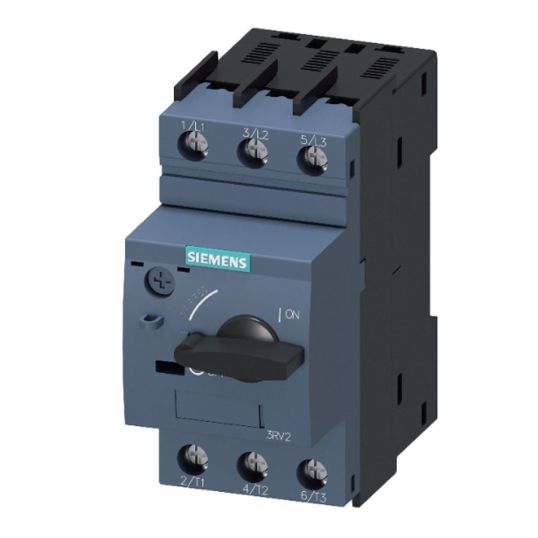

Siemens Sirius Circuit Breaker Motor Size S00 100kA 4.5 to 6.3A 690VAC 3 Pole Class 10 Screw Terminal IP20

Description

Circuit Breaker Motor, 690 Volt AC, 4.5 to 6.3 Amp, Frequency: 50 to 60 Hz, Interrupt Capacity: 100 kA, Trip Characteristic: Class 10, Number of Poles: 3, Phase: 3, Terminal Type: Screw, Operating Cycles: 100000 Cycles, IP Rating: IP20, Mounting Method: Snap-On,-20 to 60 deg C, Dimensions: 97mm Height x 45mm Width x 97mm Depth, Size S00

Key Specifications

Barcode (EAN-13)	4011209712478
SKU	SIE3RV2011-1GA10
Brand	Siemens
Product Type	Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	3RV2011-1GA10
Current	4.5-6.3 Amp
Frequency	50/60 Hz
Depth	97 mm
Height	97 mm
Interrupt Capacity	100 kA
IP Rating	IP20
Temperature	-20 to 60 deg C
Mounting Method	Snap In
Operating Cycles	100000 Cycles
Please Note	Size S00
Terminal Type	Screw
Voltage	690 Volt
Number Of Poles	3 Pole
Width	45 mm
