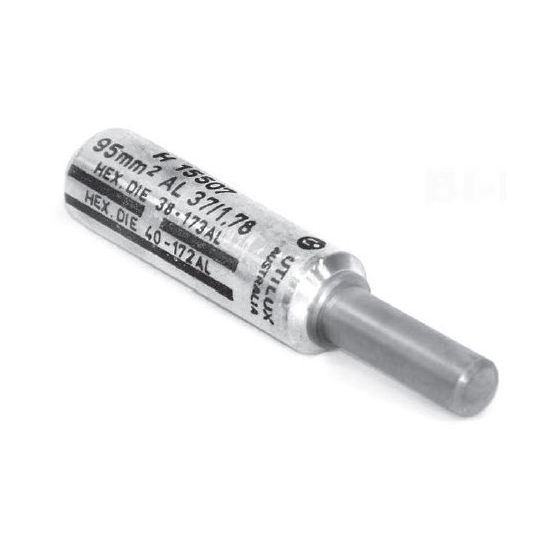

Utilux Crimp Lug Stalk Bi-Metal 240mm M18 Stud 48mm L Stalk 122mm OAL

Description

Crimp Lug, Stalk Bi-Metal, 240 mm Conductor, 21mm Inside Diameter, 35 mm Outside Diameter, M18 Stalk, 48mm Stalk Length, 122 mm Length, 60mm Barrel, Bi-Metal Body, Aluminium Conductor Barrel/Copper Stalk, Number of Strands: 61/2.25, Crimping Die: 38-284AL, 40-283AL

Key Specifications

Barcode (EAN-13)	9313988007598
SKU	UTIH15515/1
Brand	Utilux
Range Name	Stalk Lugs
Product Type	Crimp Lug Stalk Type

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Suitable for aluminium to copper terminations Friction welded Manufactured from high purity copper and aluminium Pre-filled with jointing compound Individually packed in sealed plastic bags
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	UTIH15515/1
Barrel Length	60 mm
Body Material	Bi-Metal
Conductive Material	Aluminium Barrel/Copper Stalk
Conductor Size	240 mm
Crimping Die	38-284AL 40-283AL
Inside Diameter	21 mm
Overall Length	122 mm
Number of Strands	61/2.25
Stalk Diameter	M18 Stalk
Stalk Length	48 mm
