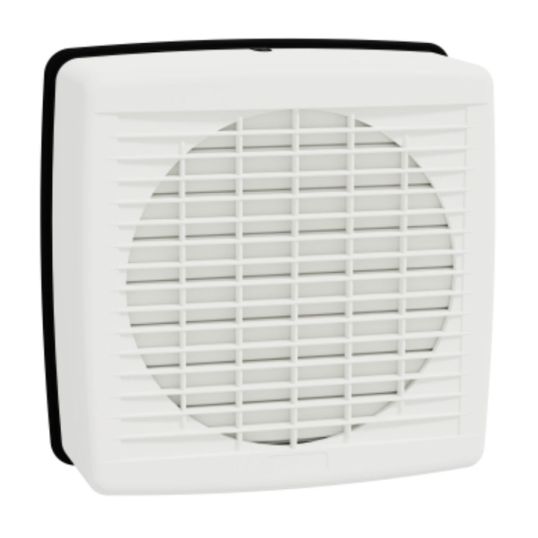

Airflow MaxAir Exhaust Fan 200mm Pull Cord Louvre White

Description

Airflow wall exhaust fan by Schneider Electric, extracts large volumes of air. It is provided with shutters that close automatically when not in use. Its Ue rated operational voltage is 230VAC at 50 Hz. The load handling of exhaust is 38W. This device is designed to be wall/conduit mounting. The dimensions of the product are (W) 271mm x (H) 271mm x (D) 110mm. It is made of ABS (acrylonitrile butadiene-styrene). The color of the product is white. It reaches IPx4 degree of protection. Airflow products are economical and are having efficient air movement solutions. High air flow for everyday needs.

Key Specifications

Barcode (EAN-13)	3606486373958
SKU	AIR7108AN
Brand	Airflow
Range Name	MaxAir
Product Type	Exhaust fans

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	A Wall exhaust fan, which extracts large volumes of air Shutters that close automatically when not in use Built-in pull cord Reaches IPx4 degree of protection 3 years Warranty
Standard Pack Size	1
UNSPSC Class	40101600
UOM	EA
Vendor Product	7108AN
Air Flow Cubic Meters per Hour	600 cu-m/hr
Colour	White
Current	0.18 Amp
Cut-Out Size	230 mm
Fan Size	200 mm
Frequency	50 Hz
IP Rating	IPX4
Material	ABS
Mounting Method	Wall
Motor Type	Ball Bearing
Noise Level	50 dB
Voltage	230 Volt
Width	271 mm
Wattage	38 Watt
