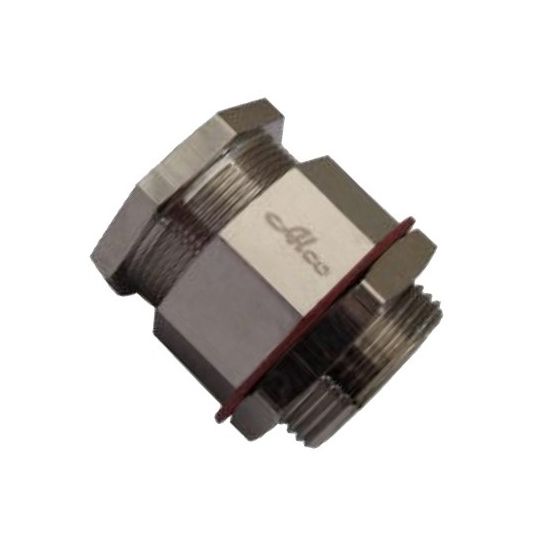

Alco Metal Cable Gland Unarmoured Weatherproof General Purpose M20x1.5 5-10mm Nickel Plated Brass IP66/68

Description

Cable Gland Metal Unarmoured Weatherproof, M20 x 1.5 mm, 10 mm Thread Length, 1.5 mm, 5 mm Min. Sheath OD, 10 mm Max. Sheath OD, 24 mm Width Across Flats, 26 mm Width Across Corners, IP66/68, Brass Body, Thermoplastic Elastomer Seal, Nickel Plated, -20 to 80 deg C

Key Specifications

Barcode (EAN-13)	9328587013390
SKU	ALCUW20A
Brand	Alco
Range Name	Type UW
Product Type	Cable Glands Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For indoor and outdoor use Provides seal on cable sheath Degree of protection against ingress of water IP66/68 Compliance with AS 1939-1990 Locknut supplied as standard Material: Brass, nickel plated
Standard Pack Size	20
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCUW20A
Body Material	Brass
Finish	Nickel Plated
IP Rating	IP66/68
Max. Sheath OD	10 mm
Min. Sheath OD	5 mm
Seal Material	Thermoplastic Elastomer
Temperature	-20 to 80 deg C
Thread Length	10 mm
Thread Pitch	1.5 mm
Thread Size	M20 x 1.5 mm
Width Across Corners	26 mm
Width Across Flats	24 mm
