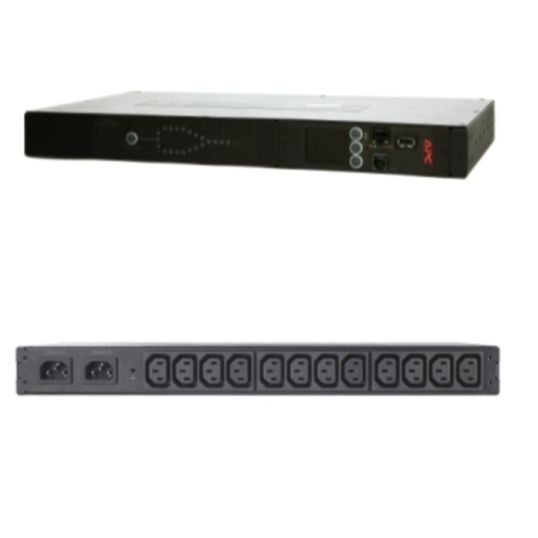

APC NetShelter Rack Automatic Transfer Switch (ATS) 1RU 10A 230V C14 Input (12)C13 Output

chevron-left
loader
Loading...

Description

chevron-down
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4421A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4421A is single phase 1U Rack ATS with 10 Amp rated current, 230 Volt rated voltage and 2000 VA load capacity. It comes with 2 IEC C14 inlet and 12 IEC C13 outlet sockets.. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Key Specifications

chevron-down
SKU
APCAP4421A
Brand
APC

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Minimized downtime disruption with Field-replaceable NMC
  • Monitor temperature and humidity efficiently
  • Dual input power cords to enhance uptime for critical load
  • Connect and manage up to 32 Rack ATSs from one IP address
  • Seamless switching with transfer time 10ms
Standard Pack Size 1
UNSPSC Class 43223300
UOM EA
Vendor Product AP4421A
Colour Black
Depth 236 mm
Current 10 Amp
Height 44 mm
Inputs C14
Load Capacity 2000 VA
Mounting Method Rack
Orientation Horizontal
Product Type simple
Voltage 230 Volt
Temperature 5 to 45 deg C
Outputs (12) C13
Rack Units 1 RU
Width 432 mm
