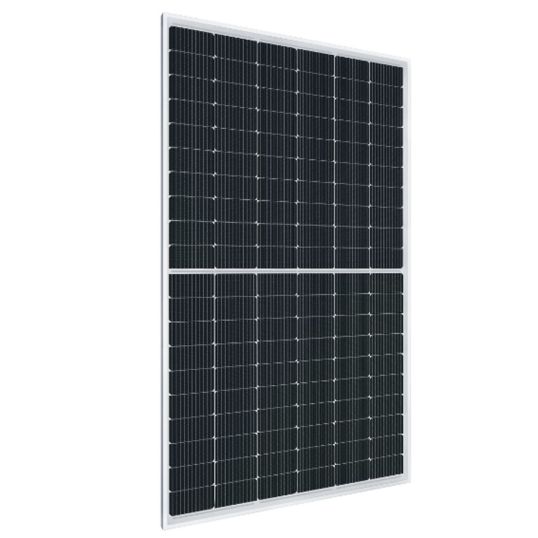

Astronergy Solar Panel 475W TopCon Monocrystalline 120 Cells 36.39V 13.05A Aluminum Black/Silver Anodized N-Type 43.31V

$Astronergy\Astronergy_ASTCHSM60N-DG-HC475W.JPG$

Description

Solar Panel, N-Type Model, TOPCon Monocrystalline Cell, 120, 475 Watt, 36.39 Volt Maximum, 13.05 Amp Maximum, 43.31 Volt Open Circuit, 13.8 Amp Short Circuit, 25 Amp Max. Fuse, 1500 Volt DC Max. System, 22% Efficiency, 0-5 Watt Power Tolerance, HCB40, MC4-EVO2A Connector, IP68 Junction Box

Key Specifications

SKU	ASTCHSM60N(DG)HC475W
Brand	Astronergy
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	TOPCon / Half-cut Low temperature coefficient (Pmpp) Non-destructive cutting PID resistance
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	CHSM60N(DG)-HC-475W
Connector Type	HCB40 / MC4-EVO2A
Certifications	CE / TUV
Efficiency	22%
Frame Construction	Aluminum Black / Silver Anodized
Front Glass	1.6 mm Thickness
Height	30 mm
Item Weight	23 kg
Junction Box	IP68
Max. Current	13.05 Amp
Max. Fuse Current	25 Amp
Max. System Voltage	1500 Volt DC
Model	N-Type
Number Of Cells	120
Open Circuit Voltage	43.31 Volt
Operating Temperature	41 deg C +/-2
Power Tolerance	0-5 Watt
Output Cables	4 sq-mm / 12 AWG Dia; Portrait: ( + )350 mm,(-)250 mm
Short Circuit Current	13.8 Amp
Temperature Coefficient	-0.29%/ deg C
Warranty	15/25 Years Product / 30 Years Linear Power
Wattage	475 Watt
Width	1134 mm
