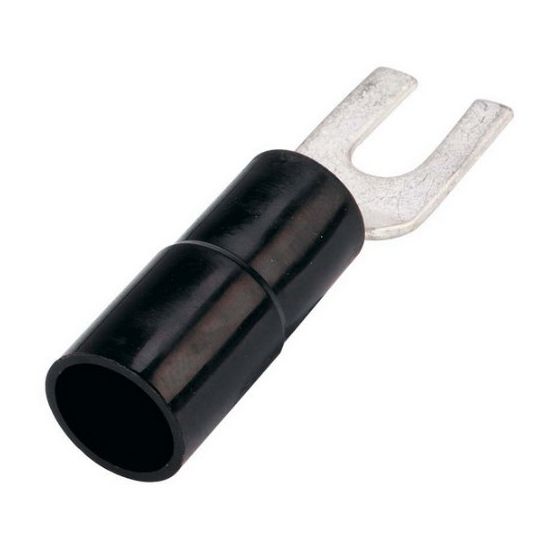

Cabac Forked Spade Insulated Single Grip Large 10mm M4 Stud Black 26mm OAL

Description

Forked Spade Terminal Insulated Single Grip Large, 10 mm, M4 Stud, Fork Spade Terminal, HNN4/K25, Nylon Insulation, Black Insulation, 26 mm Overall Length, 9.8 mm Lug Width, 4.2 mm Lug Inside Width, 10 Pack

Key Specifications

Barcode (EAN-13)	9318674519621
SKU	CAAFS10-4
Brand	Cabac
Range Name	Pre-Insulated Terminals
Product Type	Forked & Ring Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Forked Spades for larger conductors than conventional yellow range of terminals Funnel entry is provided for ease of wire insertion Terminals accommodate fine-stranded wire
Standard Pack Size	10
UNSPSC Class	39121400
UOM	EA
Vendor Product	FS10-4
Conductor Size	10mm
Crimping Die	HNN4/K25
Insulation Colour	Black
Insulation Material	Nylon
Lug Inside Width	4.2 mm
Lug Width	9.8 mm
Overall Length	26 mm
Pack Size	10 Pack
Stud Size	M4
Terminal Type	Fork Spade
