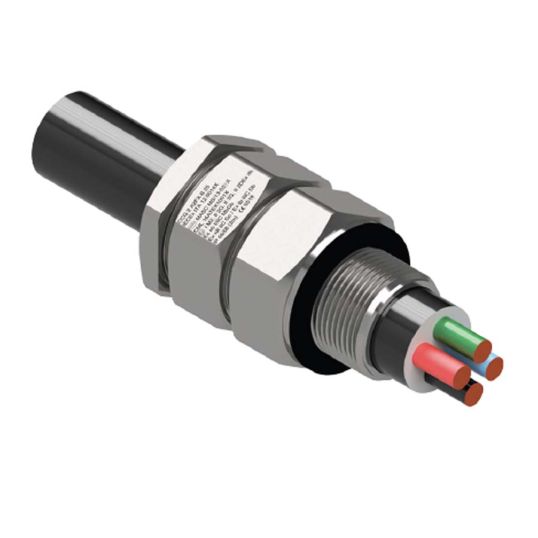

CCG Hazardous Area Cable Gland U/A Double 38-50mm M63x1.5 IP65/66/68 316/316L Stainless Steel/Aluminium/Brass

$CCG\CCG_A2FX-R.jpg$

Description

Hazardous Area Cable Gland, Unarmoured, Double Compression, M63, 15 mm Thread Length, 1.5 mm Pitch, 38 mm Min. Sheath OD, 50 mm Max. Sheath OD, 80 mm Width Across Flats, 90 mm Width Across Corners, For Single or Multi-Core Unarmoured Cable, 92 mm Protrusion Length, 97.5 Nm Torque Rating

Key Specifications

SKU	CCG057766
Brand	CCG
Product Type	Cable Glands Unarmoured Hazardous Area

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Passes the IECEx/UKEX/ATEX 100% pull test, so no additional cable clamping is required For indoor, outdoor, group I, II, III, zone 1, 2, 20, 21 and 22 hazardous areas Fitted with a specially formulated elastomeric displacement seal, giving superior cable retention, explosion protection and IP rating Precision manufactured from high quality brass (marine grade electroless nickel plated), available in aluminium or stainless steel 316/316L on request. (Note: Aluminium is not suitable for Group I applications.) Supplied with a thread sealing gasket (parallel threads only)
Standard Pack Size	2
UNSPSC Class	39121400
UOM	EA
Vendor Product	057766
Body Material	316-316L Stainless Steel / Aluminium / Brass
Finish	Nickel Plated
For Use With	Single or Multi-Core Unarmoured Cable
Gasket Material	HDPE / Nylon 66 / PTFE
Hazardous Area Rating	Group I/II/III/Zone 1/2/20/21/22 Ex db I/IIC Ex eb I/IIC Ex ta IIIC Ex nR IIC
IP Rating	IP65/66/68
Min. Sheath OD	38 mm
Max. Sheath OD	50 mm
Overall Length	107 mm
Please Note	Size 6s-63s
Protrusion Length	92 mm
Seal Material	Standard Thermoset Elastomer
Thread Length	15 mm
Temperature	-60 to 95/100 deg C (Standard Seal) / -60 to 160 deg C (Extreme Temp Seal)
Thread Pitch	1.5 mm
Thread Size	M63
Torque Rating	97.5 Nm
Width Across Corners	90 mm
Width Across Flats	80 mm
