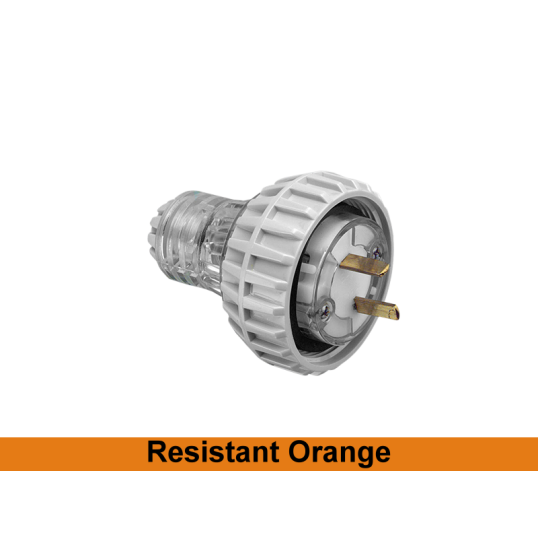

Clipsal 56 Series Plug Straight Body Weatherproof 1Ph 15A 32VDC 2 Pin Polarised Chemical Resistant Orange IP66

$ClipsalNew\C0000328-RO.png$

Description

Plug Straight Body Weatherproof, Angle: Straight, 1 Phase, 15 Amp, 32 Volt DC, 2 Pin Polarised, Chemical Resistant Orange, IP66, Screw, Terminal Capacity: 1.5 mm, Cable Gland, M20 Cable Gland, Polycarbonate, -25 to 75 deg C, 67 mm Height, 67 mm Width, 112.5 mm Depth

Key Specifications

Barcode (EAN-13)	9311554071509
SKU	CLI56P215/32RO
Brand	Clipsal
Range Name	56 Series
Product Type	Plugs Straight

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	56P215/32-RO
Angle	Straight
Cable Entry	Cable Gland
Cable Gland Size	M20
Colour	Chemical Resistant Orange
Connection Type	Screw
Current	15 Amp
Height	67 mm
Depth	112.5 mm
IP Rating	IP66
Phase	1 Phase
Pin Configuration	2 Pin Polarised
Temperature	-25 to 75 deg C
Terminal Capacity	1.5 sq-mm
Width	67 mm
Voltage	32 Volt
