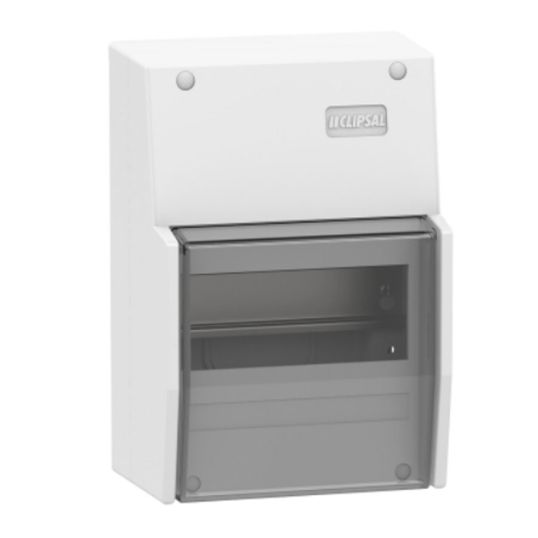

Clipsal 6 Pole Switchboard Enclosure Surface Mount 100 Amp Plastic
Loading...
Description
Switchboard Enclosure, 100 Amp, 1 Row, 6 Module, IP30, Surface Mounting, For Use With DIN Equipment, Plastic, White, 210 mm Height x 142 mm Width x 101 mm Depth
Key Specifications
| Barcode (EAN-13) |
9311554814397
|
|---|---|
| SKU |
CLIMX9E1106S
|
| Brand |
Clipsal
|
| Range Name |
Max9
|
| Product Type |
Switchboard Kits & Enclosures
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121100 |
| UOM | EA |
| Vendor Product | MX9E1106S |
| Colour | White |
| Current | 100 Amp |
| Dimensions | 210 mm Height x 142 mm Width x 101 mm Depth |
| IP Rating | IP30 |
| For Use With | DIN Equipment |
| Modules | 6 Module |
| Material | Plastic |
| Mounting Method | Surface |
| Number of Rows | 1 Row |
