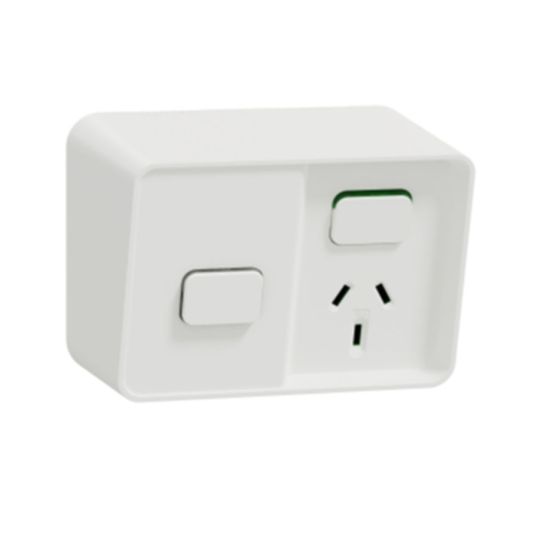

Clipsal Iconic Outdoor Switched Socket Outlet with Timer 250V 10A XW IP54 Matt White

Description

The Iconic Outdoor single switched socket with timer the is rated 10 Amp, 250 Volt and leverages both BLE (Bluetooth Low Energy) and Zigbee technology, making them ultra-flexible and scalable. Use the Wiser by SE App to set timers, schedulers or specific device features by pairing your smartphone to an Iconic connected device in BLE mode. Iconic connected devices in BLE default mode can be swapped to Zigbee mode after installation to allow connection to Wiser Home Automation.

Key Specifications

Barcode (EAN-13)	9311554811112
SKU	CLIO3015T-XW
Brand	Clipsal
Range Name	Iconic
Product Type	Socket Outlets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The Iconic Outdoor range features an innovative design to ensure your outdoor switches and sockets are kept safe and secure Integrated shutters seal the socket apertures, preventing water ingress and ensuring an IP54 protection rating. The switches are rated IP56 Integrated seals fix onto conduits or cables at entry points, removing the need for additional sealants, and pre-drilled mounting holes are positioned outside of the waterproof area to prevent leaks
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	O3015T-XW
Colour	White
Connection Type	Screw
Control Type	On/Off Button
Current	10 Amp
Depth	82 mm
Frequency	50 Hz
Height	85 mm
IP Rating	IP54
Material	Polycarbonate
Mounting Method	Surface/Wall
Number Of Poles	1 Pole + Earth
Orientation	Horizontal
Pin Configuration	3 Pin
Temperature	0 to 45 deg C
Terminal Capacity	3 x 2.5 sq-mm/2 x 4 sq-mm
Width	115.5 mm
