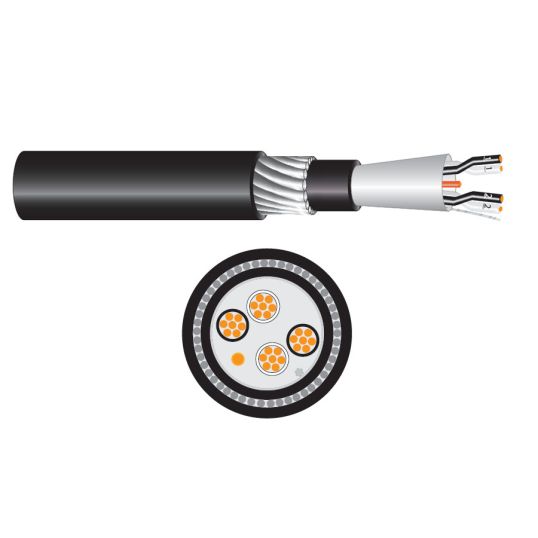

Dekoron 1875 Instrumentation Cable Armoured 2 Pair Overall Screened 1.5mm 110/150V PVC/SWA/PVC Black

Description

Instrumentation Cable, Armoured, 2 Pair, Overall Screened, 1.5 mm, Bare Copper, 110/150 Volt, 7/0.5 mm Strands, 14.656 mm Overall Diameter, 197.61 mm Bend Radius, Conductor Resistance: 13.76 Ohm/km, Aluminium/Polyester Tape Screen, Galvanised Steel Wire Armour, Flame Retardant V-90HT PVC Insulation, Flame Retardant PVC Sheath, Black White & Numbered Cores, Black Sheath, AS/NZS 3808: IEC 60079, AS/NZS 1125: IEC 60332

Key Specifications

SKU	DKNA1875-60280
Brand	Dekoron
Range Name	Type 1875
Product Type	Instrumentation Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	A1875-60280
Armour Material	Galvanised Steel Wire
Bend Radius	197.61 mm
Conductor Resistance	13.76 Ohm/km
Conductor Size	1.5 mm
Conductor Type	Bare Copper
Core Colours	Black/White Numerals
Insulation Material	Flame Retardant V-90HT PVC
Number of Pairs	2 Pair
Overall Diameter	14.656 mm
Screen Format	Overall Screened
Sheath Colour	Black
Screen Material	Aluminium/Polyester Tape
Standards	AS/NZS 3808: IEC 60079 AS/NZS 1125: IEC 60332
Sheath Material	Flame Retardant PVC
Stranding	7/0.5 mm
Voltage	110-150 Volt
