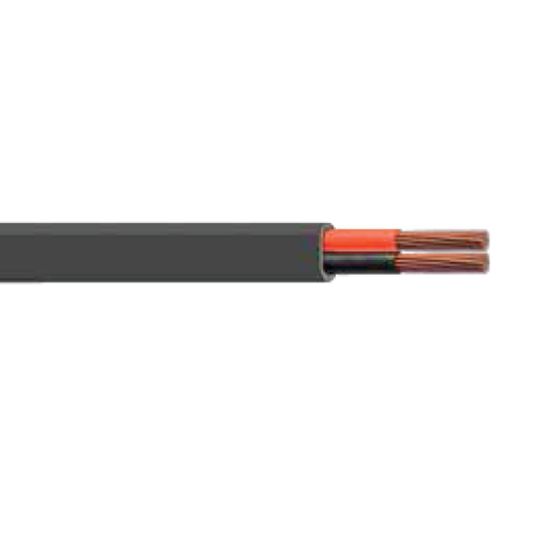

Elcon Automotive Cable Double Insulated 2 Core 3mm PVC/PVC Black

Description

Automotive Cable Double Insulated, 1.13 mm, 3 mm Conductor Size (mm), Annealed Copper, 50-120 Volt, 16 Amp, 2 Core, 16/0.3 mm Strands, 3.4 mm x 6.8 mm Overall Diameter, 0.45 mm Sheath Thickness, DC: 16.5 MOhm/m Insulation Resistance, Red/Black Core, V-90HT PVC Insulation, V-90HT PVC Sheath, Black Sheath, 90 deg C, RoHS

Key Specifications

SKU	ELNCAATS21603B
Brand	Elcon Cables
Product Type	Automotive Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	RoHS complaint 99.9% OFHC (oxygen free high conductivity) copper which does not show any brittleness
Standard Pack Size	100
UNSPSC Class	26121800
UOM	MTR
Vendor Product	CAATS21603B100M
Conductor Size	1.13 mm
Conductor Type	Annealed Copper
Core Colours	Black/Red
Current	16 Amp
Overall Diameter	3.4 mm x 6.8 mm
Insulation Resistance	DC: 16.5 MOhm/m
Insulation Material	V-90HT PVC
Number of Cores	2 Core
Sheath Colour	Black
Sheath Thickness	0.45 mm
Sheath Material	V-90HT PVC
Stranding	16/0.3 mm
Standards	RoHS
Voltage	50-120 Volt
Temperature	90 deg C
