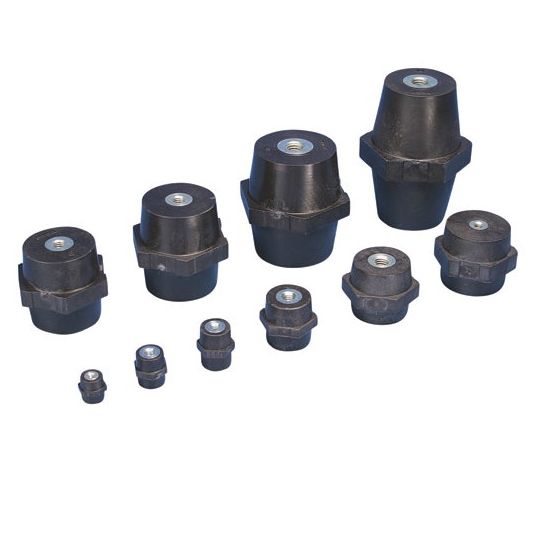

Low Voltage Insulator 1000VAC/1500VDC Glass Fibre Reinforced Polyamide For Busbar Systems/Switchboards/Motor Control

chevron-left
loader
Loading...

Description

chevron-down
Low Voltage Insulator, For Use With: Busbar Systems/Switchboards/Motor Control Centres, Glass Fibre Reinforced Polyamide, Electro Galvanized, 70mm Height x 65mm W Hex x 75mm D, 1000VAC/1500VDC, M12x14 Thread, 52mm Dia

Key Specifications

chevron-down
SKU
ERI548620
Brand
Erico
Product Type
Line Hardware

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Halogen free
  • High resistance to leakage current
  • Great stability of electrical and mechanical parameters
  • Fiberglass reinforced
  • UL Recognized in E125470 and evaluated for dielectric withstand rating of 1500 VAC/DC
Standard Pack Size 1
UNSPSC Class 39122100
UOM EA
Vendor Product 548620
Finish Electro Galvanised
For Use With Busbar Systems/Switchboards/Motor Control Centres
Material Glass Fibre Reinforced Polyamide
Please Note 1000VAC/1500VDC/M12x14 Thread/52mm Dia
